EP

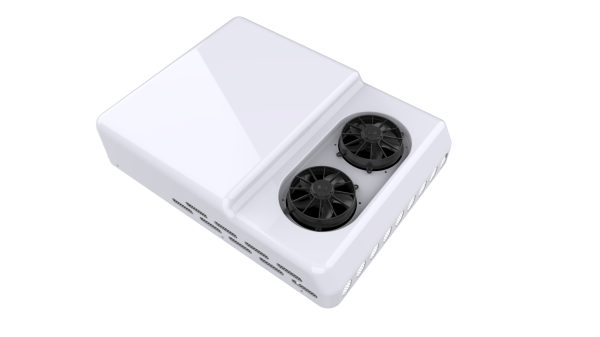

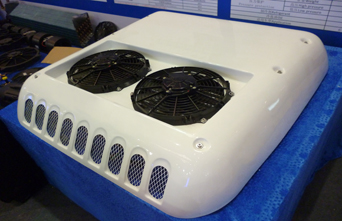

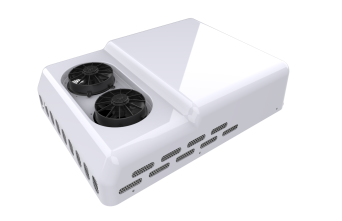

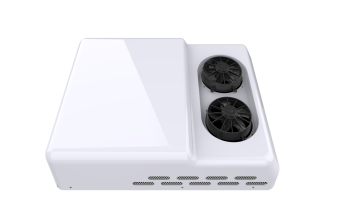

Rooftop Electric Truck A/C

EP is a rooftop electric air conditioner for truck, van, engineering vehicles and recreational vehicle with cooling capacity 3.5 Kw.

  • Coach

  • Van

  • Recreational Vehicle

  • Engineering Vehicle

Technical Data Sheet

Model EP-02G
Vehicle   Coach, Van,Engineering Vehicle,Recreational Vehicle
Cooling Capacity(kW) 3.5
Evaporator Airflow(m³/h) 560
Fresh Airflow(m³/h) 1000
Power(24V) 1.08
Compressor GYES25-D.UP.24
Size(mm) LxWxH 1050*800*225

Features


  • Compact

    Rooftop all-in-one structure, referigerants pre-charged, easy installation.

  • Application

    DC 24V Voltage, suitable for van assembly or modification.

  • Easy

    With plastic air opening, no need overall air ducts, only opening on top.

  • Efficient

    PWM control,7 steps for evaporator fan, 3 steps for condenser fan, meeting customer needs.

  • Lightweight

     Aluminium structure, total weight below 27kg.

  • Quiet

    Noise level reduced 2dB

    Keywords: Electric truck air conditioner, bus ac, bus a/c, bus air conditioning, bus air conditioner

Installation

    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

      Keywords: Electric truck air conditioner, bus ac, bus a/c, bus air conditioning, bus air conditioner
