Independent Battery Thermal Management System EFDR series

Independent Battery Thermal Management Systems works independently, driven by its own compressor, can be positioned on chassis. CLING products meet different cooling capacity requirements. We can also tailor-made as per your request.

  • City Bus

  • Intercity Bus

  • Coach

  • Shuttle Bus

  • Double Decker Bus

Technical Datasheet

Independent Battery Thermal Management Systems can be positioned independently on chassis. CLING has products meeting different cooling capacity requirements. We can also tailor-made as per your request.

Model EFDR-02-I EFDR-02-II EFDR-03
Rated cooling capacity 4kw 5kw 8 kw
LP power consumption 600w 800W 800w
HP power supply DC400V-DC750V DC400V-DC750V DC400V-DC750 V
LP power supply DC24V(18V-30V) DC24V(18V-30V) DC24V(18V-30V
Weight 36kg 45KG 45kg
Size (mm) LxWxH 612*480*365 690*600*280 819*550*280
Control power DC24V on/off signal DC24V on/off signal DC24V on/off signal
LP power source Supply by user DC-DC module  DC-DC module
Pump capacity 8m&1800L/h 13m&2400L/h
16m&2800L/h
13m&2400L/h
16m&2800L/h
Refrigerant R134a R134a R407c
Coolant 50%VV Ethylene glycol aqueous solution  50%VV Ethylene glycol aqueous solution  50%VV Ethylene glycol aqueous solution
Pipe (mm) Water inlet Φ 25 Water inlet Φ 25  water inlet Φ 25
Protection level  IPX7  IPX7   IPX7
DC-DC Not integrated Integrated in system Integrated in system
Water tank
Not integrated
Not integrated Not integrated

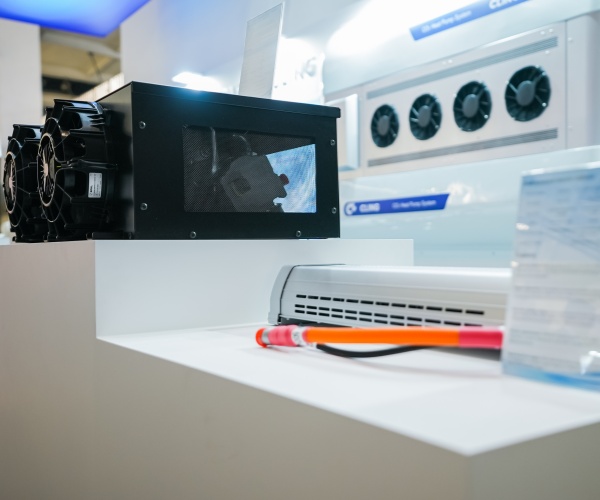

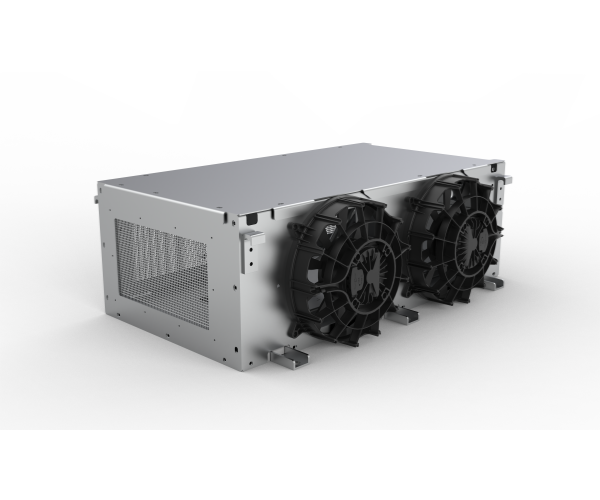

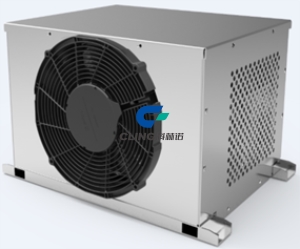

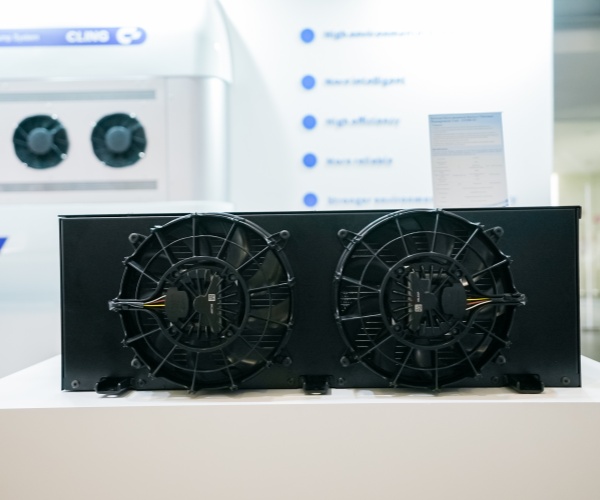

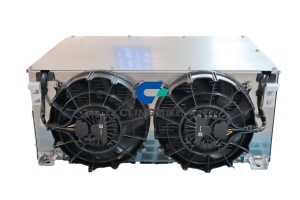

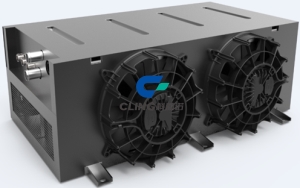

Picture: bus btms, bus BTMS, battery thermal management system, battery chiller bus BTMS, bus battery thermal management system, bus battery cooler bus BTMS, bus battery thermal management system, bus battery cooler

Features





  • HIGHLY full DC, authentic VFD electric compressor

    Ultralight, consistent, superb performance, long life span.

  • Danfoss brazed plate heat exchanger

    Efficient, effective, trustworthy performance

  • Brand water pump

    Long lifespan, proven performance

  • SPAL brush-less fan

    Lower noise, long lifespan, PWM control module, smart condenser fan control, cooling on demand.

  • Powerful cooling

    Micro channel heat exchanger, heating transfer surface increased 30%, heating efficiency improved 10%, cooling capacity increased 10%.

  • Brand waterproof plug-in

    Reliable, IPX7 protection.

Functions

    BTMS: battery thermal management system is a very cricital unit in an electric bus, it's duty to provide a most comfortable temperature climate for grumpy battery unit.
    Battery units work well at a temperature range of 10-30 degree centigrade, but in cold and hot weather, battery performance declines, and battery cells either become volatile or too dull. CLING BTMS acts like a nanny to babysit thoese sensitive batteries. It works under the command of BMS, battery management system to output capacity to cool or heat the coolant carrier. A bad BTMS has the potential to lose control of battery climate and thus cause a fire, that's too bad.


    Features:
    1.PTC heater for liquid (6-14 kw)

         can be equipped, working mode include:

         standby, cooling, heating, auto circulation.

     2. Web control can be realized

     3. CAN2.0 communication

     4. Self diagnose function

     5. Real time info upload

     6. EMC meets grade III requirement

    Application:




    So, what matters most in a good BTMS? The people who design it, here is our team:


    Do contact us for more infomation!
