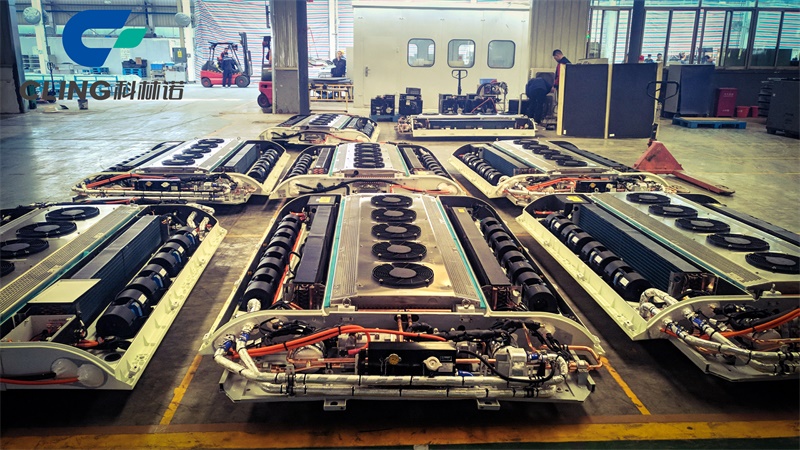

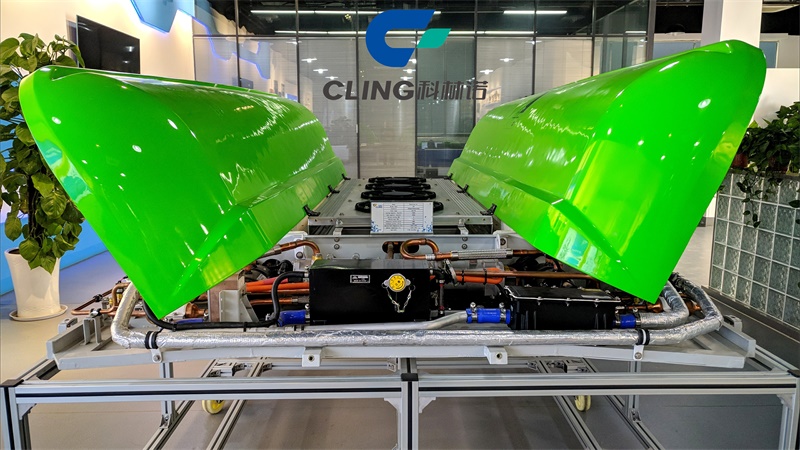

Integrated Battery Thermal Management System

Model EZDS-04-J EZDS-06-J ...

WhatsApp Send Email

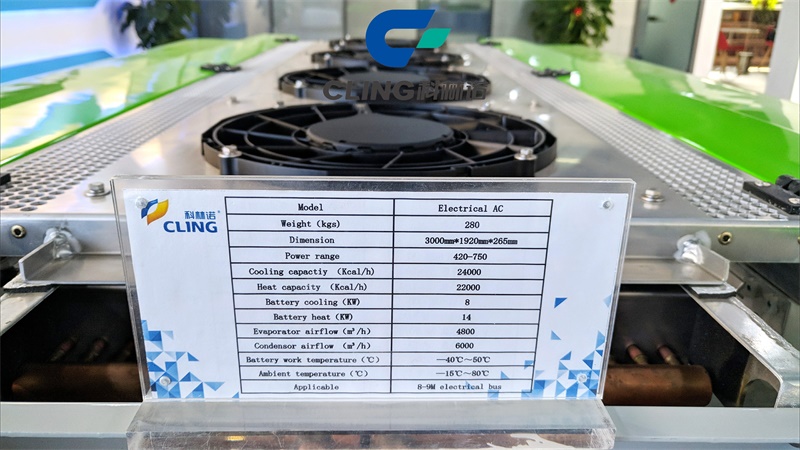

Technical Data Sheet

Model	EZDD-04-J	EZDS-04-J	EZDS-05-J	EZDS-06-J	EZDS-07-J
Cooling Capacity (kcal/h)	15000	24000	28000	32000	38000
Heating Capacity (kcal/h)	14000	22000	26000	30000	36000
Battery Cooling Capacity Driving / Charging (kW)	3/5	5/8	5/8	5/8	5/8
Evaporator Airflow (m³/h)	4000 (4pcs)	4000 (4pcs)	6000 (6pcs)	6000 (6pcs)	8000 (8pcs)
Condenser Airflow (m³/h)	6000 (3pcs)	8000 (4pcs)	8000 (4pcs)	10000 (5pcs)	10000 (5pcs)
Refrigerant	R407C	R407C	R407C	R407C	R407C
Weight (kg)	195	255	285	315	335
Size (mm) LxWxH	27001630240	27502000260	30002000260	32502000260	32502000260
Application (M)	6-7	7.5-9	9-10	10-12	12-13

Features

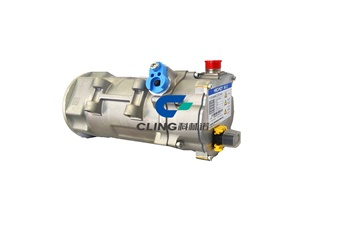

HIGHLY full DC, authentic VFD electric compressor

Ultralight, consistent, superb performance, long life span.

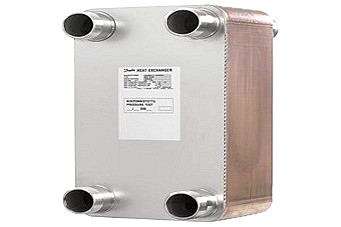

Danfoss brazed plate heat exchanger

Efficient, effective, trustworthy performance

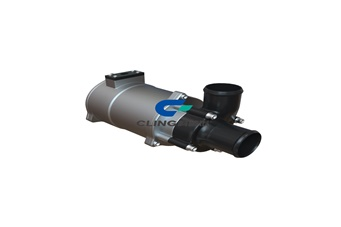

Brand water pump

Long lifespan, proven performance

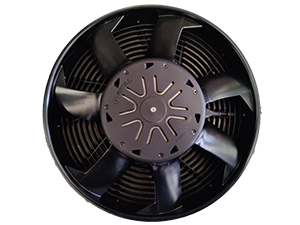

SPAL brush-less fan

Lower noise, long lifespan, PWM control module, smart condenser fan control, cooling on demand.
Powerful cooling

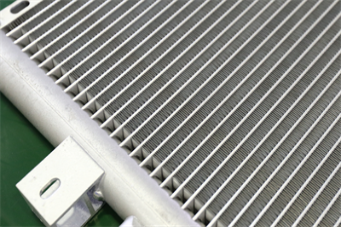

Micro channel heat exchanger, heating transfer surface increased 30%, heating efficiency improved 10%, cooling capacity increased 10%.

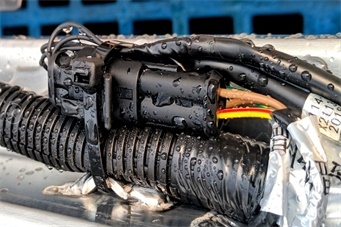

Brand waterproof plug-in

Reliable, IPX7 protection.

Remarks

This series of integrated BTM is designed based on our EZDS series electric air conditioners, having solutions for 8 meter, 10 meter & 12 meter buses/ coaches.

Heating capacity is 8/14 KW, using PTC to heat up anti-freezing liquid. It's optional, as in some contries, heating is not nessary and battery has pre-heating function.

1. A/C cooling, heating, battery cooling, heating, auto recirculation working mode

2. A/C cooling and battery cooling work same time

3. CAN2.0 communication

4. Fault auto diagnose function

5. Real time upload of power info

6. EMC meets level Ⅲ standard requirement.
