FFND Bus AC

Built-in, Split

FFND is built-in air conditioning units for school bus, shuttle bus, Coaster, high decker bus and double decker bus, cooling capacity from 10000 to 48000 kcal/h.

  • Van

  • Double Decker Bus

Technical Data Sheet

Model FFND-01 FFND-06 FFND-08 XFND-10
Cooling Capacity(kcal/h) 14000 32000 48000 10000
Evaporator Airflow(m³/h) 3000(3pcs) 8000(8pcs) Upper floor 6000(6pcs)
Lower floor 3000(3pcs)
1200
Condenser Airflow(m³/h) 4500(3pcs) 10000(5pcs) 10000(5pcs) 4000
Compressor Displacement (CC) 310 650 750 210
Refrigerant R134a R134a R134a R134a
Condensor Size (mm) LxWxH 1096*361*357 Side 855*476*1085
Rear 1951*372*443
1951*443*352 588*20*702
Evaporator Size(mm) LxWxH 1667*629*175 1815*320*200(2pcs) Up 1468*387*202(2pcs)
Bottom 1510*586*261

1245*693*217
Application Coaster/T7 High Decker High Decker
Double Decker Bus
5-6M School Bus

Features

  • Customized design

    Customized design upon request

  • Thermal insulation materials

    Environmentally friendly, antiseptic, odourless and flame-retardant(A-0).

  • Integrated cooling and heating

    Integrated cooling and heating.

  • Easy Maintenance

    1 condenser can be with several evaporators.

  • Proven performance

    Over 10,000 sets running globally since 2003.

  • Quiet

    Through acoustic material and fan airflow optimization, noise level 2dB lower.

Installation

    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

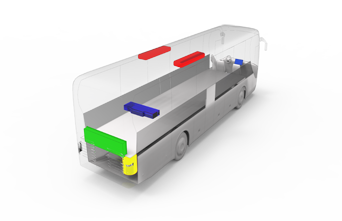

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

References

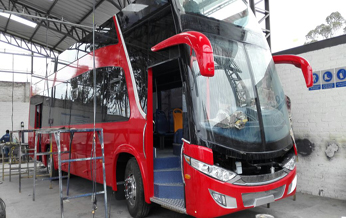

    • High Decker Bus Air Conditioner in South America

    • Double Decker Bus Air Conditioner in Hong Kong

    • High Decker Bus Air Conditioner in South America
