CM-350 Bus Air Conditioner

    CM-350 series rooftop mounted split type A/C is our latest light weight product, achieving higher cooling capacity by less energy consumption. Optimized design for maintenance and repair.

    • City Bus

    • Intercity Bus

    • Coach

    • Shuttle Bus

    • High Decker Bus

    Technical Data Sheet

    Model CM350
    Cooling Capacity(kcal/h) 32000
    Max Power Consumption (A) 90-95
    Evaporator Airflow(m³/h) 6000(6pcs)
    Condenser Airflow(m³/h) 10000(5pcs)
    Compressor Displacement(CC) 647
    Refrigerant R134a
    Weight (kg) 170
    Size (mm) LxWxH 3350*1720*250
    Application (m) 11-13

    Features


    • Front windward design

      Micro-channel heat exchanger, 25% reduction in weight, 5% reduction in fuel consumption, heat exchange efficiency improved 20%, refrigerant charged 50% less, cooling capacity 10% larger.

    • 100% DACROMET anti-corrosion coated coil

      800 hours salt spary test, suitable for harsh enviroment.

    •  LFT-D Structure

      Ultralight, consistent, recyclable and rigid.

    • Thermal insulation materials

      Environmentally friendly, antiseptic, odourless and flame-retardant(A-0).

    • Patented CAN control

      Modular design, digital communication;PWM control module, evaporator fan stepless speed regulation; smart condenser fan control, cooling on demand.

    • Proven performance

      Over 150,000 sets running globally since 2003.

    Installation


      • Preparation

        First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

      • Evaporator and Condensor Installation

        Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

      • Cover Installation

        Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

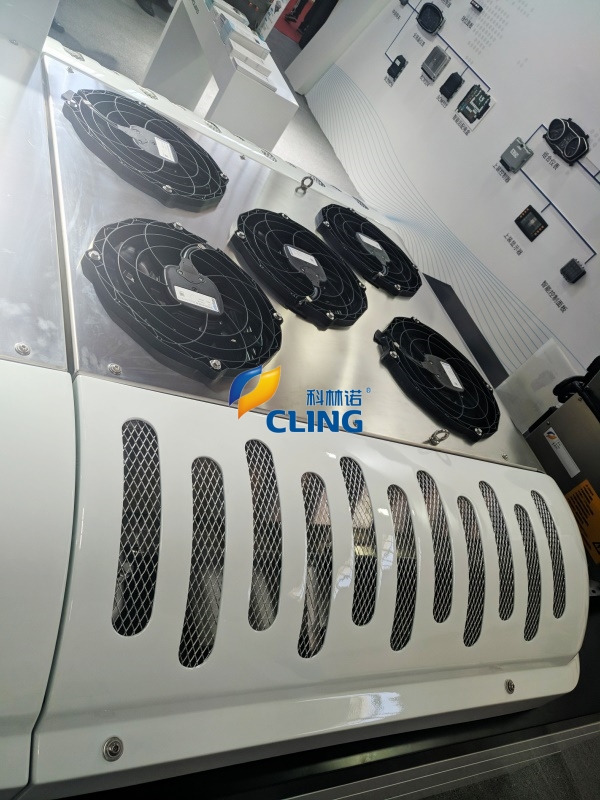

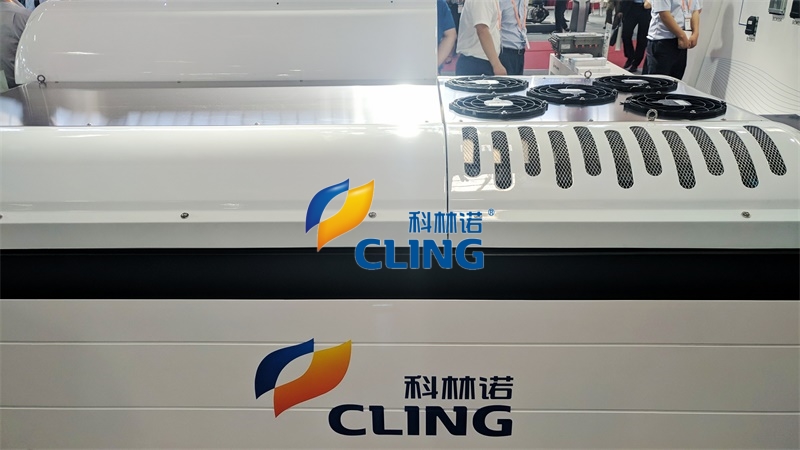

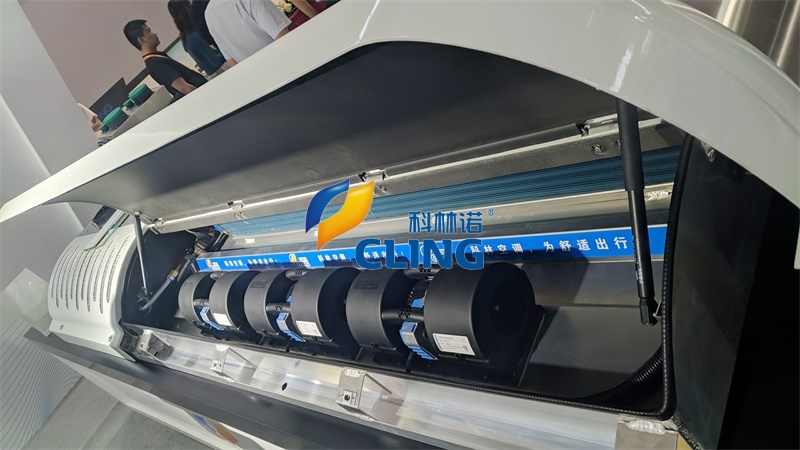

    Detail Photos
