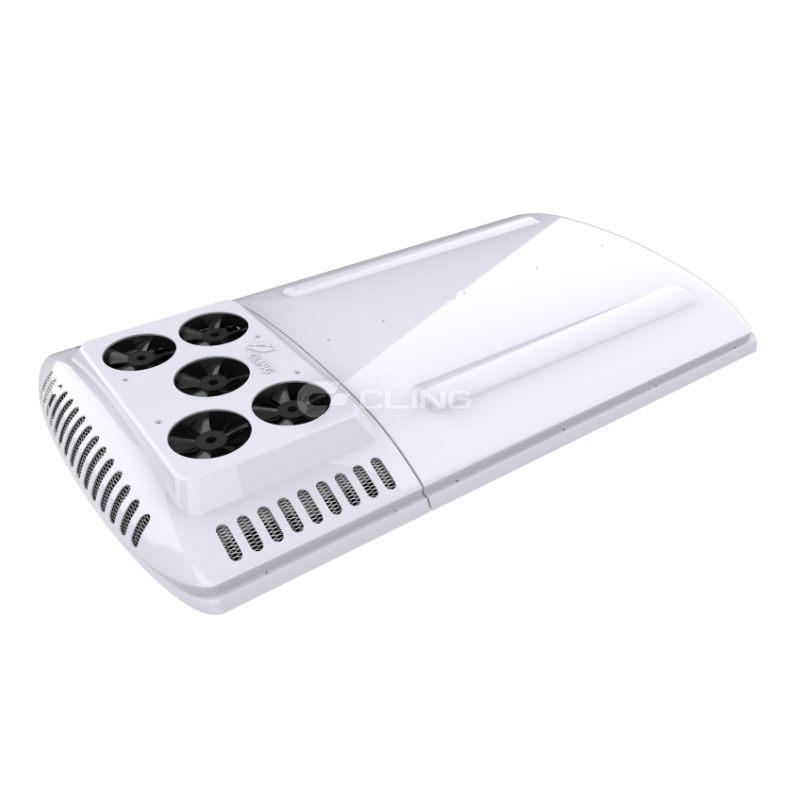

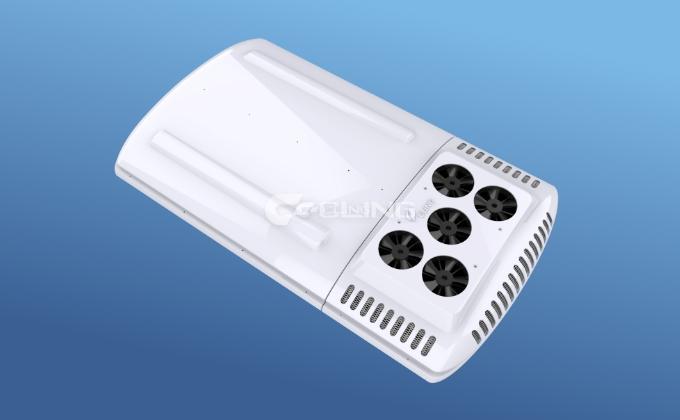

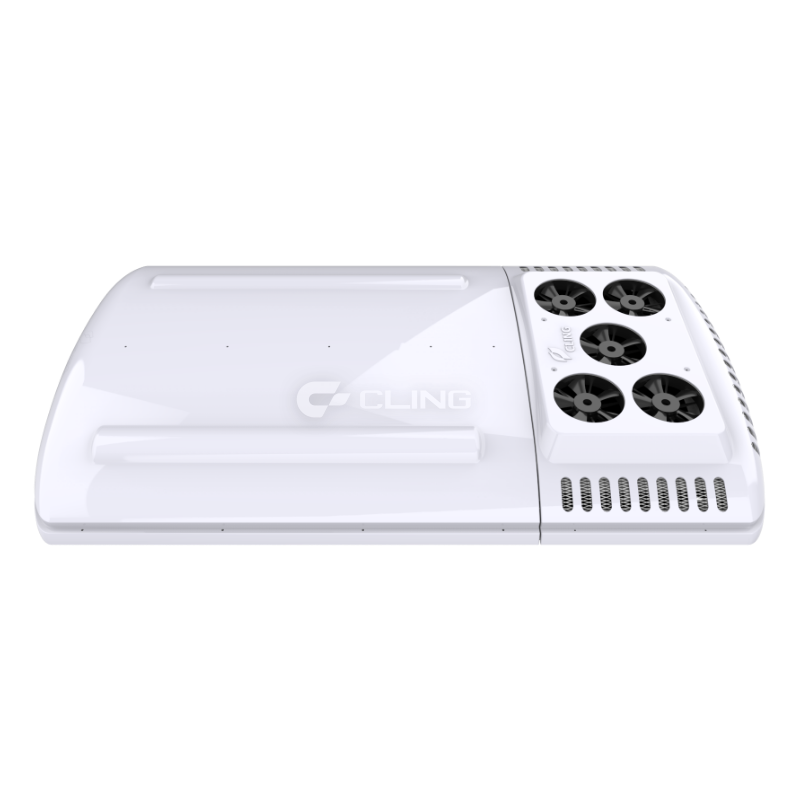

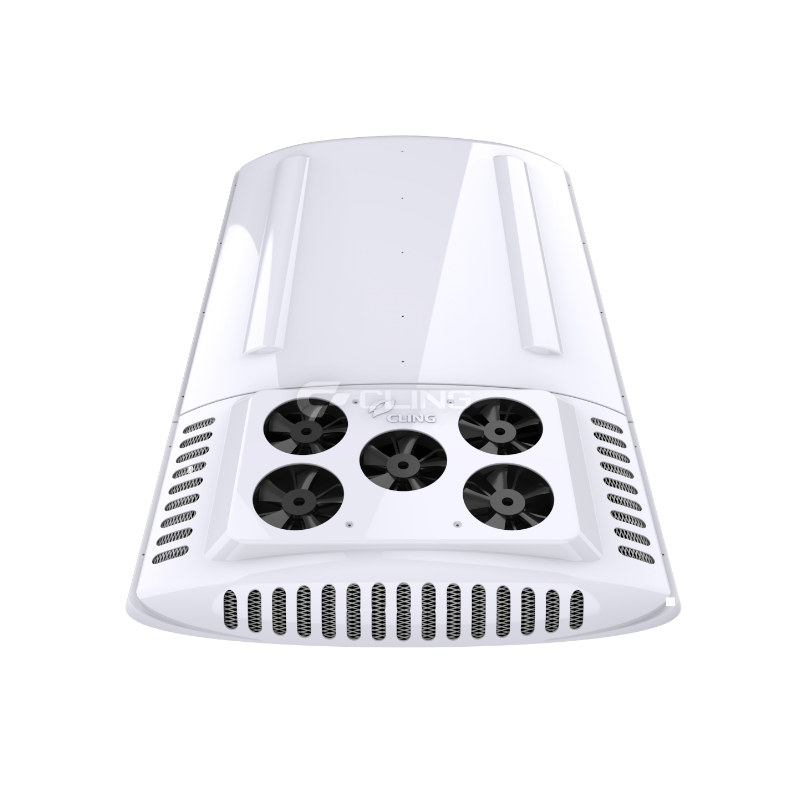

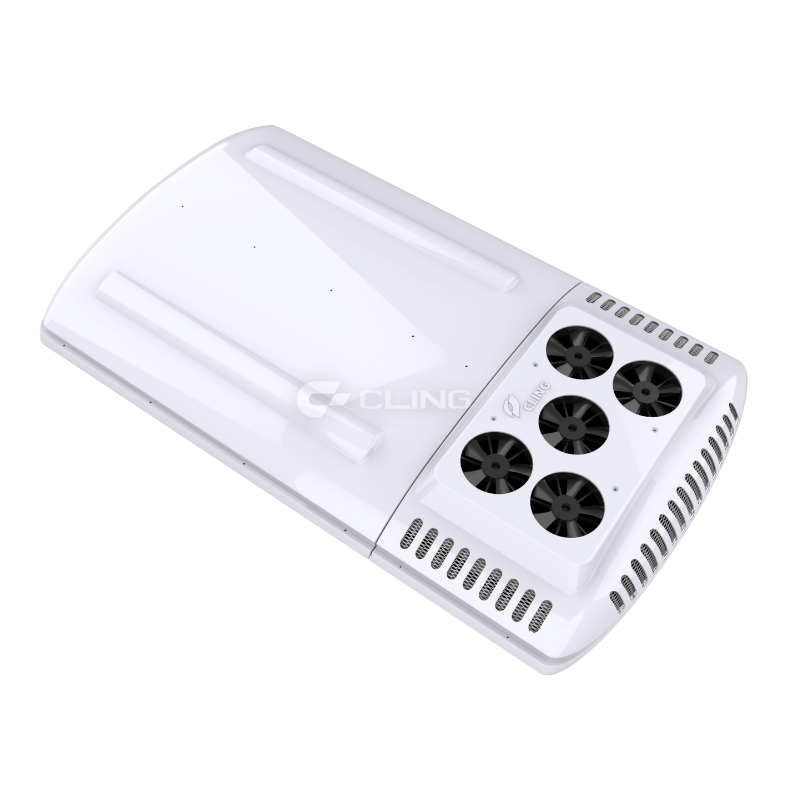

CLING PZD Series Bus Air Conditioner
The Cling PZD series air conditioner is a roof-mounted front windward bus air conditioning product, suitable for 6-13M buses. It has been promoted as a proven product for more than 15 years. It has stable and reliable quality, large cooling capacity and rich product functions. For example, it can integrate the cooling and heating defroster, wall-mounted radiator, single cooler in the driver area, and has an integrated cooling and heating temperature control function. The condenser adopts a high-efficiency microchannel heat exchanger, which has great advantages in compact structure and lightweight product.
-
Intercity Bus
-
Coach
Home
Products
Product Introduction
Product Introduction
The PZD series air conditioner is a Cling bus air conditioning product, which has the characteristics of compact and lightweight structure, high energy efficiency, large cooling capacity and environmental protection. It is a market-proven product with stable and reliable quality and is widely used in Asia and the Middle East.
Features
Lightweight
The air conditioner casing is an LFT-D composite molded casing, which has good heat insulation and aging resistance, is recyclable, compact in structure and extremely lightweight.
High-efficiency heat exchanger
The evaporation core adopts a 7mm internal thread tube, which has higher heat exchange efficiency. At the same time, the large-span tube process is adopted to optimize the refrigerant process. Under the same heat exchange capacity, the number of heat exchange tubes is less and the weight is lighter.
Ease of installation
The air conditioner hoisting process is completed in one go, and there is no need to reinstall the evaporator and condenser docking pipes and harnesses, shortening the installation time and improving efficiency.
Self-developed standard fans with prolonged service life
Low noise: The fan noise is 2dB lower than that of its competitive products; Long service life: The service life of the condenser fan increases by 25%, and that of the evaporator fan increases by 50%; High reliability: The top three core components in the industry; Fully automatic motor assembly line.
Energy-saving
Compressor energy regulation technology allows automatic adjustment of the compressor displacement, and reduces the compressor input power after reaching the set temperature.
Diverse product functions
The system integrates a cooling and heating defroster, a wall-mounted radiator, and a single cooler in the driver's area. It features an automatic temperature control function for both cooling and heating, utilizing technology for temperature and humidity control. This system requires no manual operation, as it automatically switches modes and adjusts settings to achieve optimal comfort.
Rapid cooling technology
The high-efficiency air conditioner with large cooling capacity distributes a three-dimensional airflow throughout the passenger compartment, enabling rapid cooling and consistent temperature across the vehicle.
Air purification technology
It can detect PM2.5, formaldehyde, CO₂, and TVOC (safety monitoring of volatile gases). It also issues an alarm when VOC levels exceed safe standards, serving as a safety warning.
NVH technology
The application of various black technologies, such as mufflers and low-noise fans, improves the riding experience.

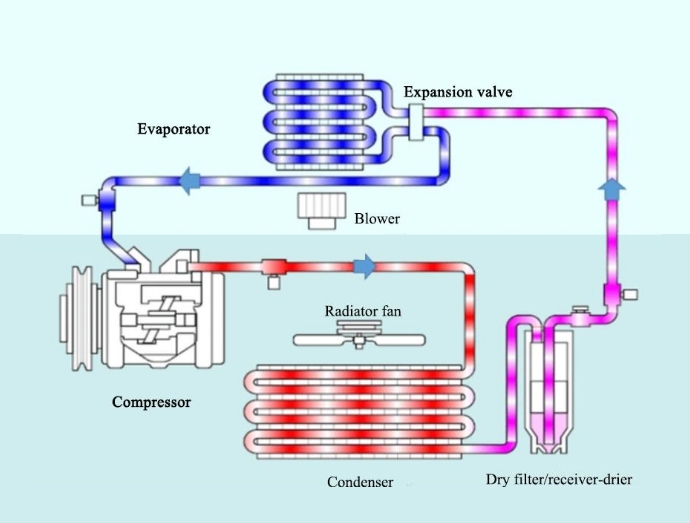

- Working principle
-
At cooling mode, the liquid refrigerant absorbs heat and vaporizes, becoming LP, LT steam, and goes into compressor, and gets compressed into HT, HP gas, then moves through 4 way valve, then into condenser to lose heat, it becomes mid pressure, LT liquid, then throttled by expansion valve, loses pressure, then goes into evaporator to vaporize. Such loop goes on and on.
Technical Parameters

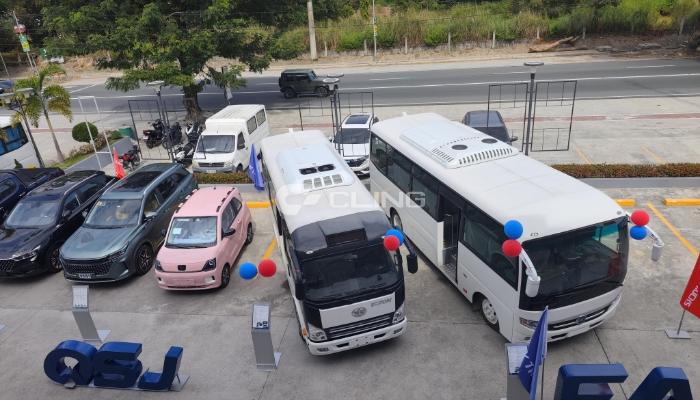

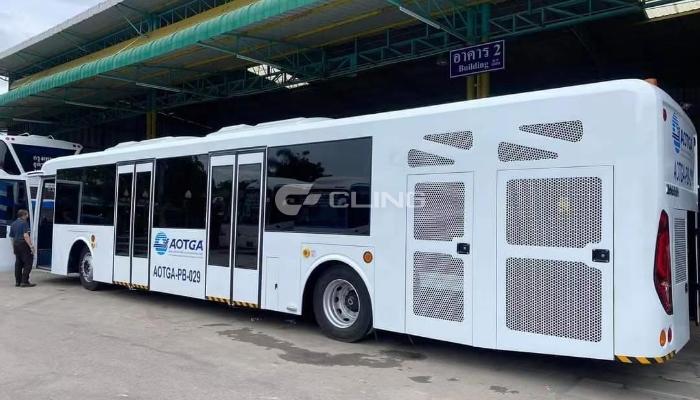

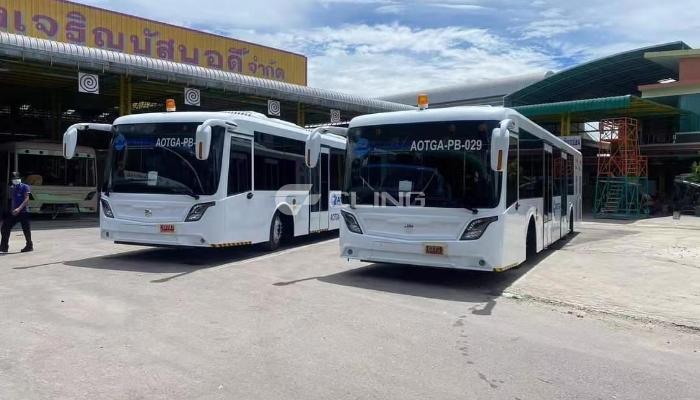

Customer Cases
