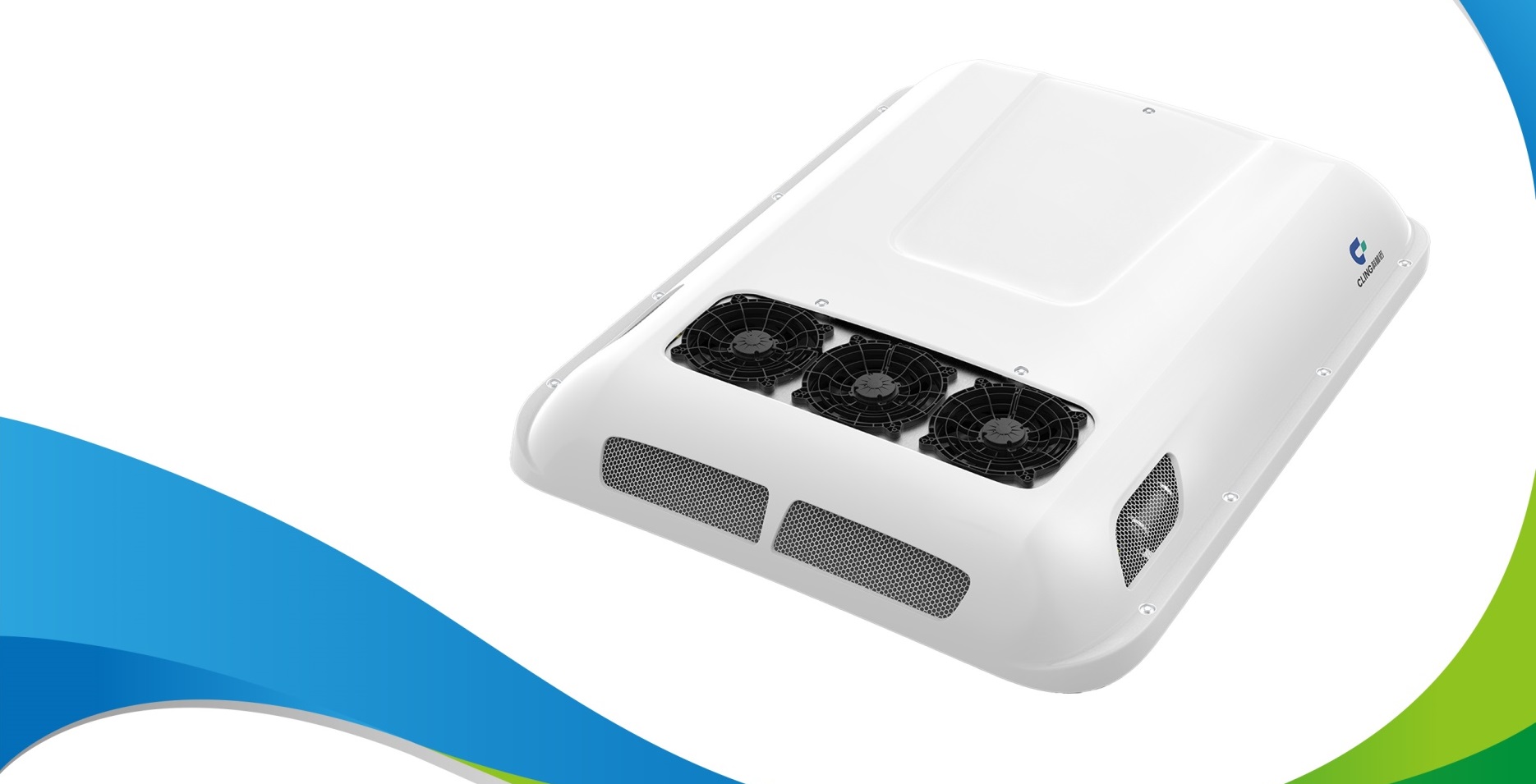

DD Minibus AC

CLING DD series is rooftop mounted bus air conditioner for 6 to 14m bus and coach, with cooling capacity from 14000 to 38000 kcal/h, widely used in Asia, America, Middle East and Africa due to its powerful performance.

  • City Bus

  • Coach

  • Van

  • School Bus

  • Sprinter

Technical Data sheet

Model

DD-01

DD-02

Vehicle Length

6-7m

7-7.7m

Cooling Capacity(kcal/h)

14000

16000

Voltage (V)

24

24

Power consumption (A)

45

50

Evaporator Airflow(m³/h)

3200(4pcs)

3200(4pcs)

Condenser Airflow(m³/h)

4000(2pcs)

6000(3pcs)

Compressor Displacement(CC)

313/330

380

Refrigerant

R134a

R134a

Refrigerant charge (kg)

5.5

6.0

Weight (kg)

104

113

Size(mm) LxWxH

2200*1670*205

2200*1670*205

Note:
1. Compressor Brand: VALEO BITZER OR BOCK
2. Fan & Blower Option: Brush or Brushless, CLING or International Brand
3. Condenser Coil: Micro Channel, Copper Tube and Aluminum Fins



Features

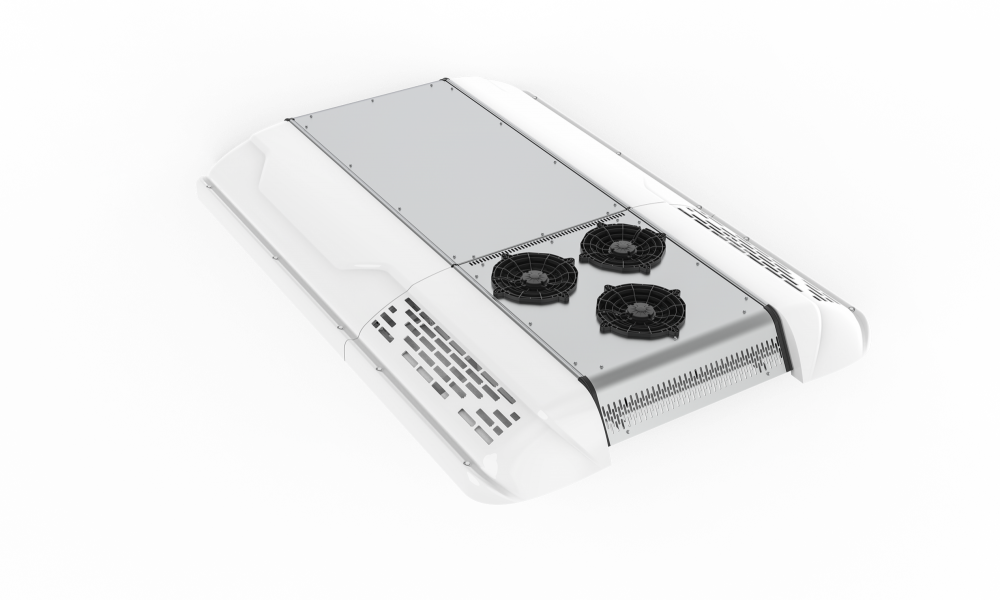

  • Front Windward Design

    Micro-channel heat exchanger, 26% reduction in weight, 5% reduction in fuel consumption, heat exchange efficiency improved 20%, refrigerant charged 50% less, cooling capacity 10% larger.

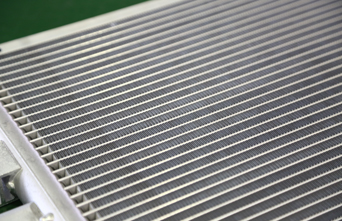

  • 100% DACROMET Anti-corrosion Coated Coil

    800 hours salt spary test, suitable for harsh enviroment.

  •  LFT-D Structure

    Ultralight, consistent, recyclable and rigid.

  • Thermal Insulation Materials

    Environmentally friendly, antiseptic, odourless and flame-retardant(A-0).

  • Patented CAN Control

    Modular design, digital communication;PWM control module, evaporator fan stepless speed regulation; smart condenser fan control, cooling on demand.

  • Proven Performance

    Over 150,000 sets running globally since 2003.





Installation


    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.
