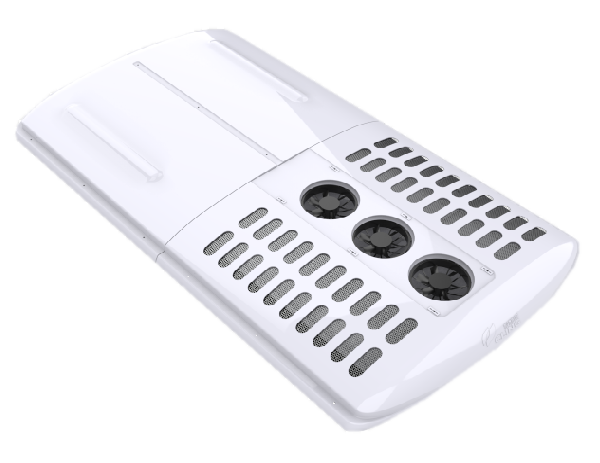

BFFD Bus AC

Split, Rooftop, Economic

CLING BFFD series is rooftop mounted split bus air conditioner for 6 to 18m bus and coach, with cooling capacity from 18000 to 54000 kcal/h, widely used in Asia, America, Middle East and Africa due to its powerful performance.

  • City Bus

  • Intercity Bus

  • Coach

Technical Data sheet

Model

BFFD-04

BFFD-05

BFFD-06

Cooling Capacity(kcal/h)

24000

28000

32000

Max Power Consumption (A)

75

85

95

Evaporator Airflow(m³/h)

4000(4pcs)

6000(6pcs)

8000(8pcs)

Condenser Airflow(m³/h)

6000(3pcs)

8000(4pcs)

10000(5pcs)

Compressor Displacement(CC)

550

550

650

Refrigerant

R134a

R134a

R134a

Weight (kg)

170

215

255

Size(mm) LxWxH

3335*1820*195

3804*1902*195

4435*1902*195

Application

8-9m

10-11m

12-13m

Note:
1. Compressor Brand: VALEO, BITZER OR BOCK
2. Fan & Blower Option: Brush or Brushless, Local or International Brand
3. Condenser Coil Option: Micro Channel, Copper Tube and Aluminum Fins
4. Double Compressors Optional
5. Refrigerant: R134a
6. Cover material: SMC, housing material: LFT-D

Features

  • LFT-D structure

    Ultralight, consistent, recyclable and rigid.

  • Thermal insulation materials

    Environmentally friendly, antiseptic, odourless and flame-retardant(A-0).

  • Proven performance

    Over 150,000 sets running globally since 2003.

  • Quiet

    Through acoustic material and fan airflow optimization, noise level 2dB lower.

  • Powerful cooling

    Through big margin deisgn, heating transfer surface increased 30%, heating efficiency improved 10%, cooling capacity increased 10%.

  • Patented CAN control

    Modular design, digital communication; PWM control module, evaporator fan stepless speed regulation; smart condenser fan control, cooling on demand.

    kEYWORDS: bus air conditioner, rooftop bus air conditioner, bus air conditioning, bus A/C, bus ac

Installation

    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

References

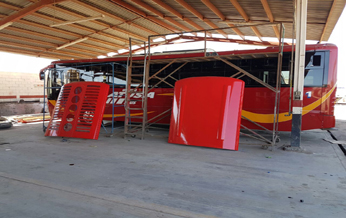

    • Split Bus Air Conditioner BFFD in South America

    • Split Bus Air Conditioner BFFD in America

    • Split Bus Air Conditioner BFFD in Africa
