AQ BOX

CLING HVAC has recently developed a new gadget to display the bus air quality! It is able to display temperature, humidity, PM2.5, AQI, TVOC, very useful and easy to be installed on your bus!

City Bus
Intercity Bus
Coach
Shuttle Bus
High Decker Bus
Double Decker Bus

Chat Now Send Email

AQ BOX

AQ BOX!!!

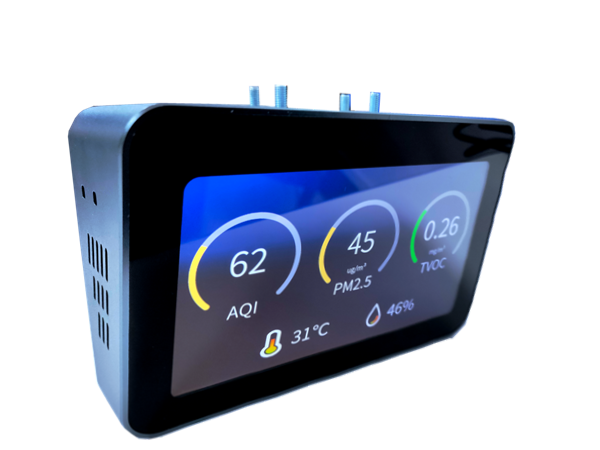

A new tech gadget developed by CLING HVAC team to display the realtime bus air quality, including temperature, humidity, PM2.5, TVOC, by calculation, system output the AQI (air quality index). Both driver and passengers shall get to know the bus air quality anytime.
It is equiped with a 7 inch IPS screen, with 72° FULL ANGLE VIEW, 1024*600 resolution, aluminum alloy body.
Advantages:
1, AQ BOX accurately detects the PM2.5, TVOC, AQI, temperature, humidity, realtime detection.
2, Grey color aluminum alloy body, 7"inch IPS screen, 72° FULL ANGLE VIEW, 1024*600 resolution.
3, Low weight: 0.6kg
4, Low power consumpition: 3w.
5, Easy installation: 4 bolts imbedded on top, and a L shape braket for installation.

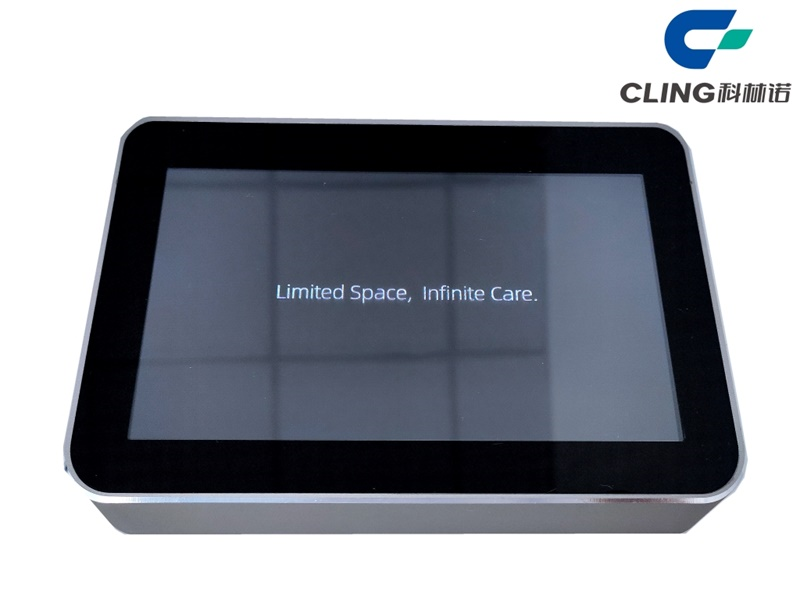

Boot interface

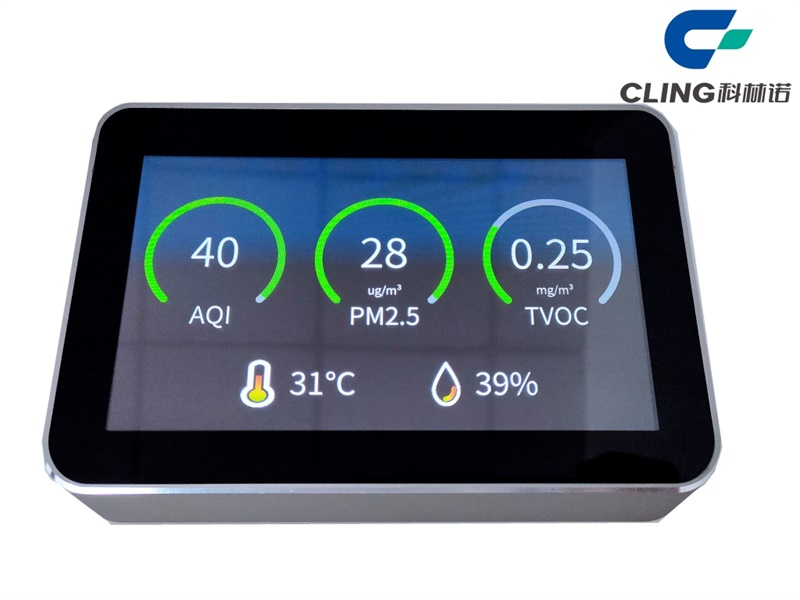

AQI, PM2.5, TVOC display interface

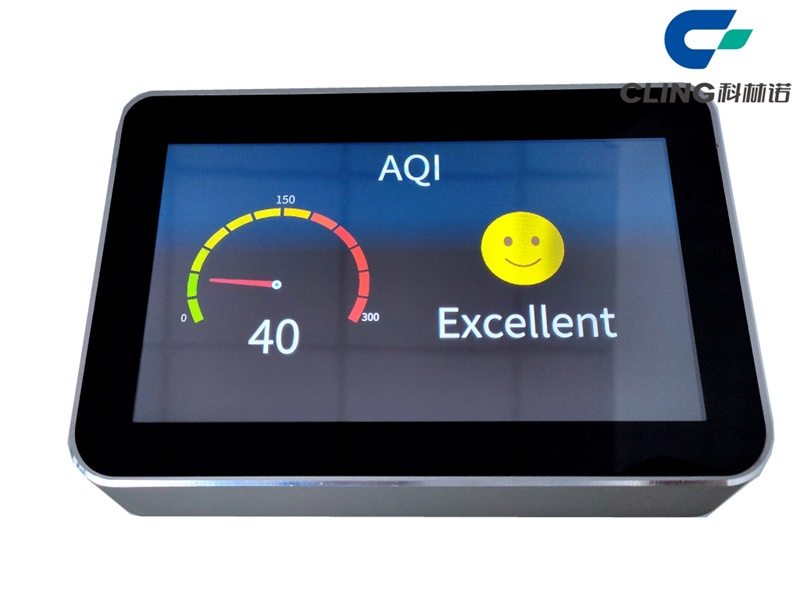

AQI display interface

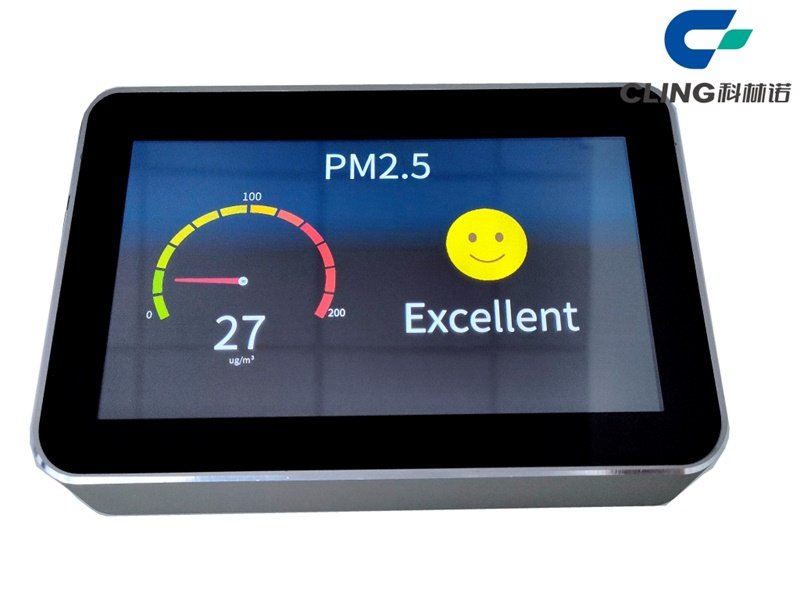

PM2.5 display interface

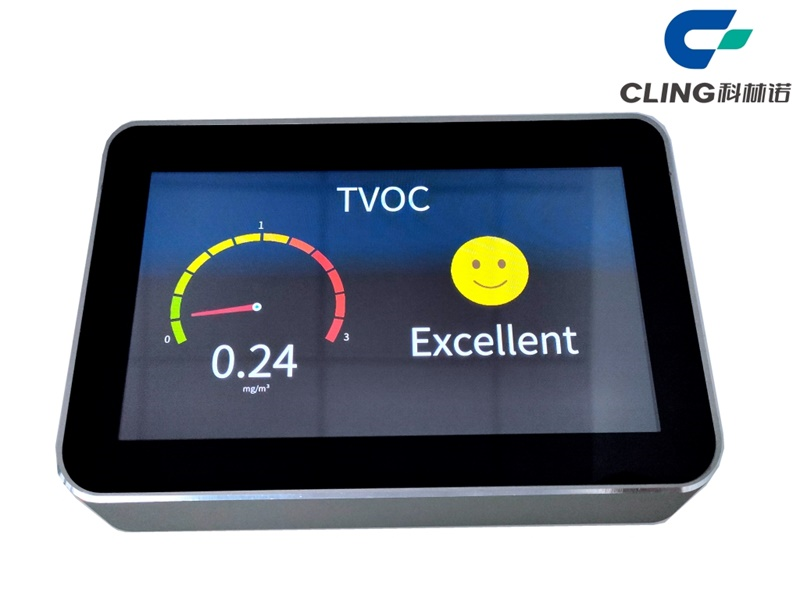

TVOC display interface

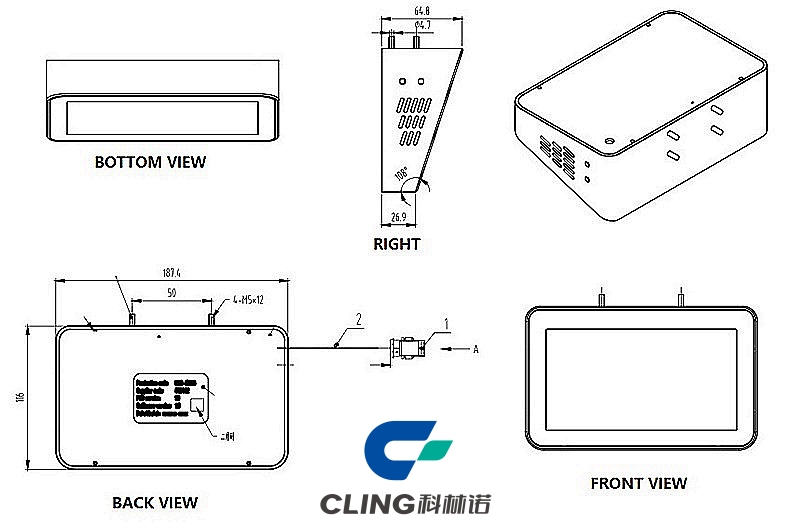

Drawing:

Video:

Brief introduction:

Detail introduction, full demonstration of AQ-BOX

Application
