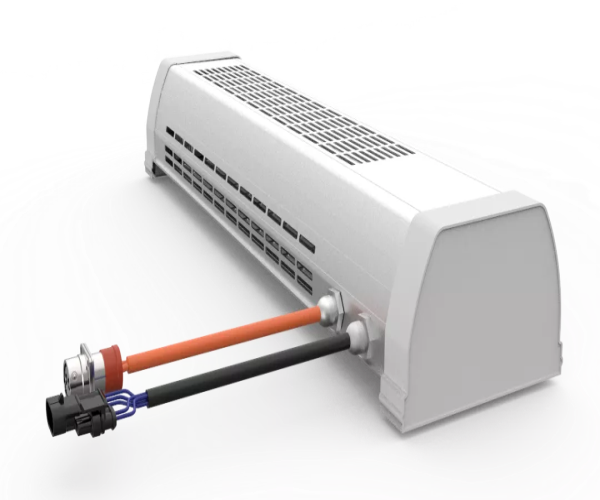

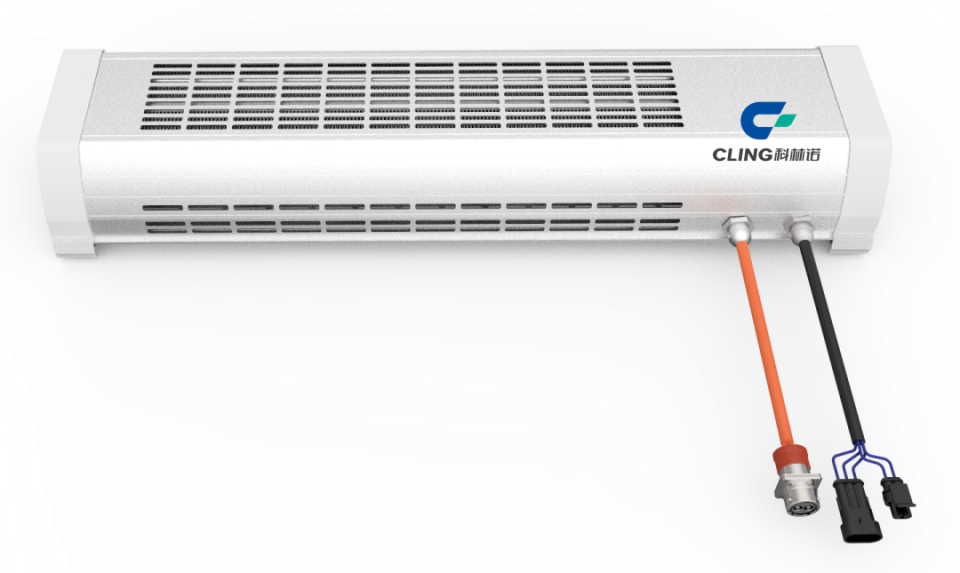

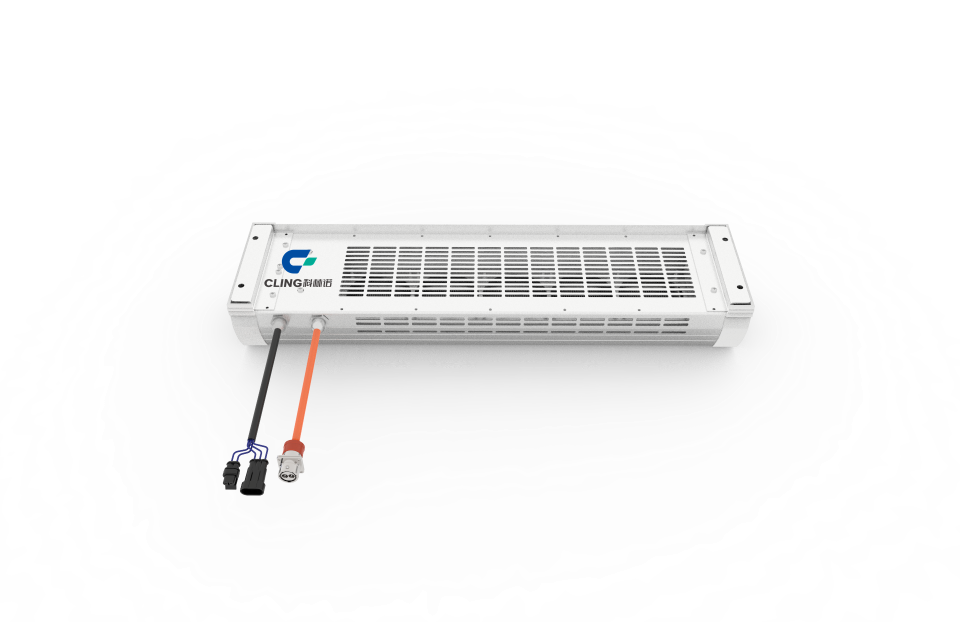

Cling Electric Convector for Bus HVAC System

CLING's electric convector is specially designed for passenger compartment heating on electric buses and coaches, having various heating capacities to cater for your needs.

City Bus
Intercity Bus
Coach
Shuttle Bus
High Decker Bus
Double Decker Bus

WhatsApp Send Email

Technical Data Sheet

CLING's electric convector is specially designed for passenger compartment heating on electric buses and coaches, having various heating capacities to cater for your needs.

Model	KLDS-01	KLDS-02	KLDS-03	KLDS-07
Heating	1300kcal/h 1.5kW; 5100BTU/h	2200kcal/h 2.5kW; 8500BTU/h	2600kcal/h 3kW; 10200BTU/h	6000kcal/h 7kW; 24000BTU/h
Airflow (m³/h)	170	230	325	750
Blower Power Consumption(W)	20	36	49	85
Blower (Lifespan)	Brushless axil flow fan 20000h
Speed Mode	One Shift	Two Shifts	Two Shifts	Two Shifts
Dimension (mm) L×W×H	65316595	666178103	666178103	1818178103
Weight (kg)	4.3	6.2	6.2	13.6
Protection Grade	IP54 as a whole part (IP68 for high-voltage components), EMC-3
Application (M)	6-12

Features & Appearance

ØQuite & comfy：

Noise ＜59 dB, an enjoyable environment for passengers.
ØPleasing appearance：

Stream line & round corner design, nice looking, easy installation.
ØSafe & reliable：

20000h long life span fans, IP68 high voltage protection, EMC grade 3, ground wire connection to guarantee safety. E-mark certified.
ØVarious options：

Various heating capacities available; various configurations for harness direction, fan speed, dimensions.

ØBespoke design：

Air flow simulation analysis, specific designs for users habits.
