Rooftop Truck/Van A/C

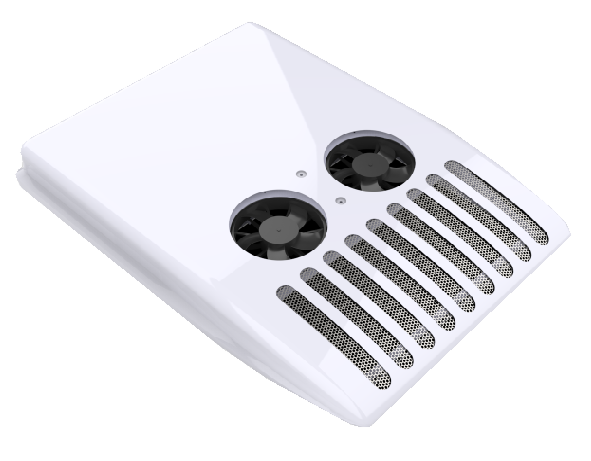

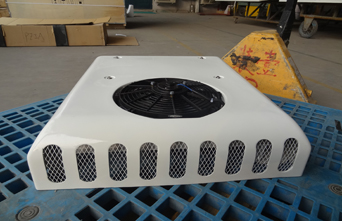

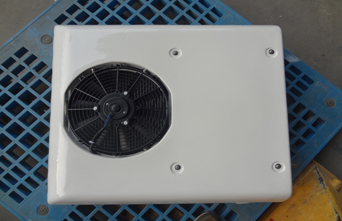

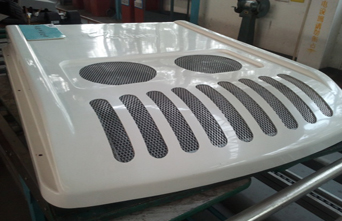

DZ is a rooftop air conditioner for engineering vehicle, ambulance, van and truck with cooling capacity from 3 to 10 kW. DZ-8C is tailor made for Sprinter, Iveco daily.

Van
Ambulance
Engineering Vehicle

WhatsApp Send Email

Technical Data Sheet

Model	DZ-03	DZ-05	DZ-08	DZ-10
Application	Engineering Vehicle	Ambulance	Van	Van
Cooling Capacity（kW)	3	5	8	10
Evaporator Airflow（m³/h)	600	800	1000	1000
Condensor Airflow（m³/h)	1200	1500	2000	2000
Compressor Displacement(CC)	138	138	160	210
Size（mm) LxWxH	765758222	956761190	16601245213.5（237.5）	16611245214

Features

Compact design

Small size, more efficient.
Flexibility

Cooling for specialized zone
Independent installation

Easy installation.
Salt Spray Test

To ensure the performance in application near sea enviroment.
Vibration Test

To ensure the reliability during bus running.
Water Test

To proivde the best performence for raining days.

Keywords: Rooftop truck air conditioner, sprinter air conditioner, iveco daily air conditioner

Installation

Preparation

First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.
Evaporator and Condensor Installation

Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.
Cover Installation

Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

Keywords: Rooftop truck air conditioner, sprinter air conditioner, iveco daily air conditioner

References

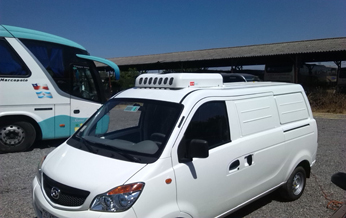

South America References

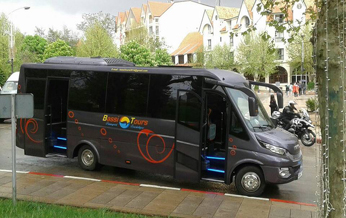

Africa References
Africa References
