PZD Bus AC

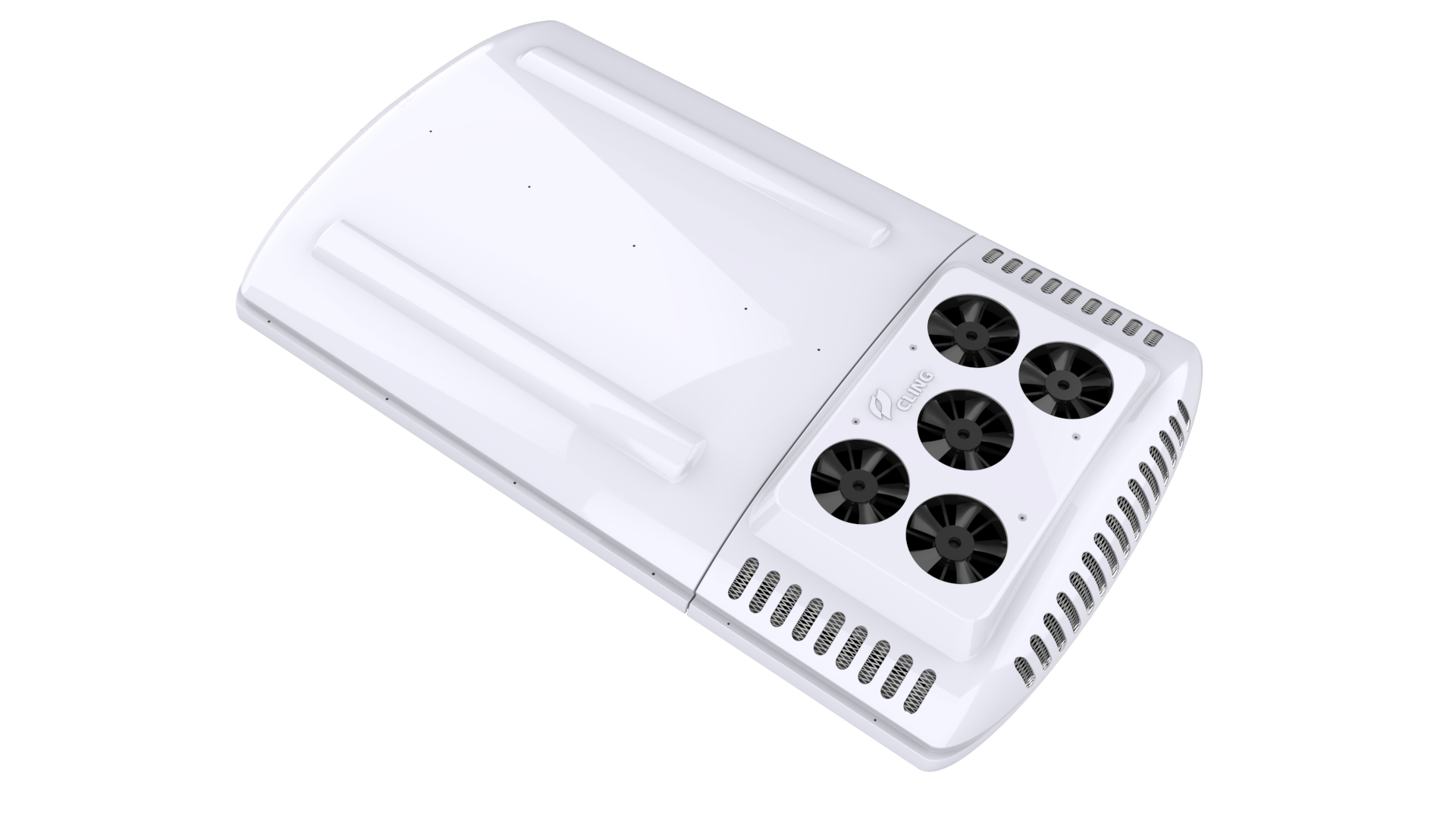

PZD is a rooftop air conditioning units for 6 to 14 m school bus, cooling capacity from 14000 to 32000 kcal/h, light weight, more economical.

  • City Bus

  • Intercity Bus

  • Coach

  • Van

  • School Bus

Technical Data Sheet

Model

PZD-I

PZD-III

PZD-IV

PZD-V

PZD-VI

PZD-VII

Cooling Capacity(kcal/h)

14000

18000

22000

24000

28000

32000

MAX Max Power Consumption (A)

45

60

60

60

85

95

Evaporator Airflow(m³/h)

4000(4pcs)

4000(4pcs)

4000(4pcs)

4000(4pcs)

6000(6pcs)

8000(8pcs)

Condenser Airflow(m³/h)

4000(2pcs)

6000(3pcs)

6000(3pcs)

6000(3pcs)

8000(4pcs)

10000(5pcs)

Compressor Displacement(CC)

310

400

400

550

550

650

Refrigerant

R134a

R134a

R134a

R134a

R134a

R134a

Weight (kg)

140

140

140

140

200

235

Size(mm) LxWxH

2388*1710*205

2590*1715*205

2590*1715*205

2590*1715*205

3010*1902*225

3285*1902*225

Application

6-7m

7-8m

8-9米

9-10m

10-11m

11-13m

Note:

1. Compressor Brand: VALEO,BITZER OR BOCK

2. Fan&Blower Option: Brush or Brushless, Local or International Brand

3, Refrigerant: R134a

4, Aluminum micro channel condenser, copper tube and fin evaporator

5, Cover: SMC, housing: LFT-D, environmental friendly


Features

  • Front windward design

    Micro-channel heat exchanger, 25% reduction in weight, 5% reduction in fuel comsumtion, heat exchange efficiency improved 20%, refrigerants charged 50% less, cooling capacity 10% more.

  • 100% DACROMET anti-corrosion coated coil

    800 hours salt spary test, suitable for harsh enviroment.

  •  LFT-D Structure

    Ultralight, consistent, recyclable and rigid.

  • Thermal insulation materials

    Environmentally friendly, antiseptic, odourless and flame-retardant(A-0).

  • Patented CAN control

    Modular design, digital communication;PWM control module, evaporator fan stepless speed regulation; smart condenser fan control, cooling on demand.

  • Proven performance

    Over 150,000 sets running globally since 2003.

    Keywords: bus ac, bus A/C, bus air conditioner, bus air conditioning.

Installation

    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

      Keywords: bus ac, bus A/C, bus air conditioner, bus air conditioning.
