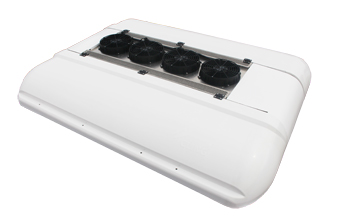

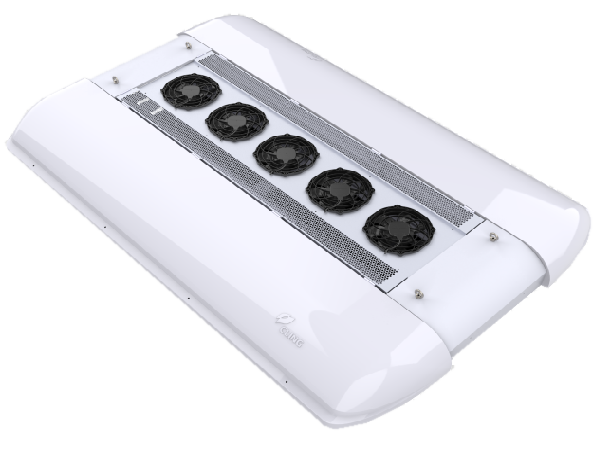

SDD Bus AC

Compact, Rooftop

SDD is a one-piece rooftop ultralight bus air conditioning widely used in European markets, for 7 to 18m bus and coach, cooling capacity from 22000 to 54000 kcal/h.

  • City Bus

  • Intercity Bus

  • Coach

Technical Data Sheet

Model

SDD-03

SDD-04

SDD-05

SDD-06

SDD-07

Cooling Capacity(kcal/h)

22000

24000

28000

32000

38000

Max Power Consumption (A)

75

75

80

100

105

Evaporator Airflow(m³/h)

4000(4pcs)

4000(4pcs)

6000(6pcs)

8000(8pcs)

8000(8pcs)

Condenser Airflow(m³/h)

6000(3pcs)

8000(4pcs)

8000(4pcs)

10000(5pcs)

12000(6pcs)

Compressor Displacement(CC)

400

550

550

650

750

Refrigerant

R134a

R134a

R134a

R134a

R134a

Weight (kg)

161

161

191

207

220

Size(mm) LxWxH

2500*1920*220

2500*2000*220

2750*2000*220

3000*2000*220

3000*2000*220

Application

6-7m

8-9m

10-11m

12-13m

13-14m

Note:

1. Compressor Brand: VALEO,BITZER OR BOCK

2. Fan & Blower Option: Brush or Brushless, Local or International Brand

3. Copper/aluminum condenser and evaporator optional

4. Refrigerant: R134a

5. Cover material: SMC, housing material: LFT-D, environmental friendly

6. Actual data will vary due to different configurations



Features

  • Compact unit

    20% reduction in weight, heat exchange efficiency improved 20%, refrigerants charged 50% less.

  • V type micro-channel heat exchanger optional

    Heat exchange surface increased 20%, Cooling capacity 15% more.

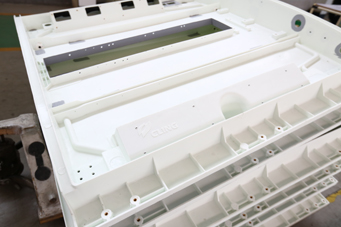

  • LFT-D structure

    Ultralight,consistent,recyclable and rigid.

  • Thermal insulation materials

    Environmentally friendly, antiseptic,odourless and flame-retardant(A-0).

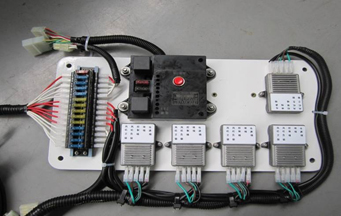

  • Patented CAN control

    Modular design, digital communication;PWM control module, evaporator fan stepless speed regulation; smart condenser fan control, cooling on demand.

  • Proven performance

    Over 20,000 sets running globally since 2003.

    KEYWORDS: bus air conditioner, bus air conditioning, bus A/C, bus ac

Installation

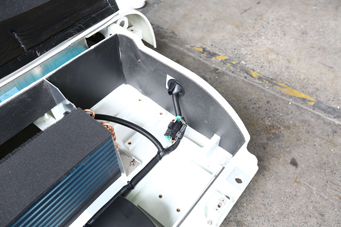

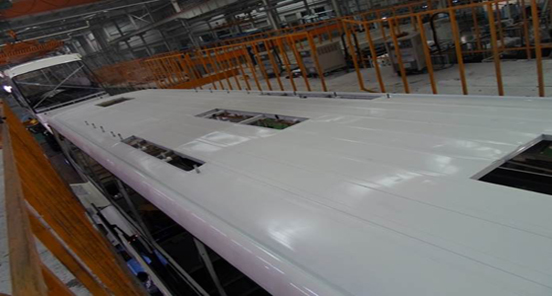

    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

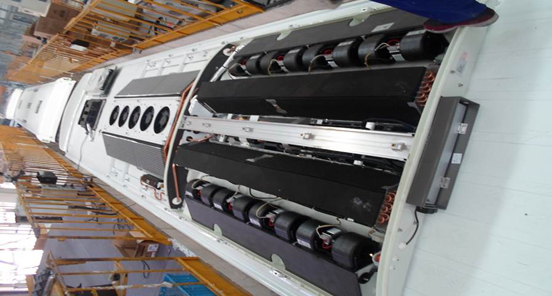

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

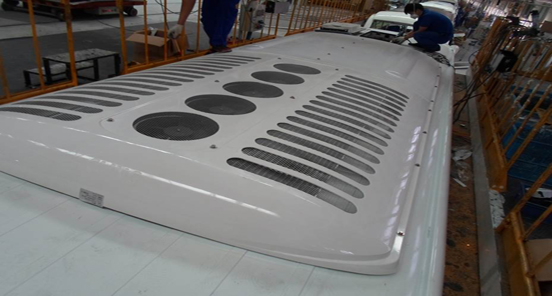

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

      KEYWORDS: bus air conditioner, bus air conditioning, bus A/C, bus ac

References

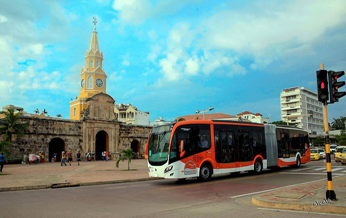

    • SDD Bus Air Conditioner in South America

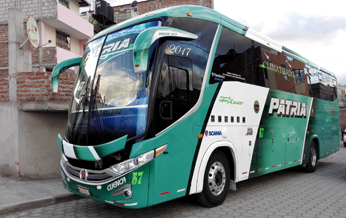

    • SDD Bus Air Conditioner in South America

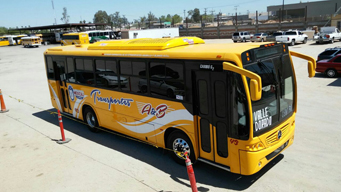

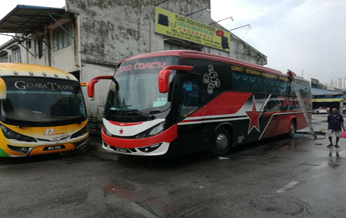

    • SDD Bus Air Conditioner in Asia
