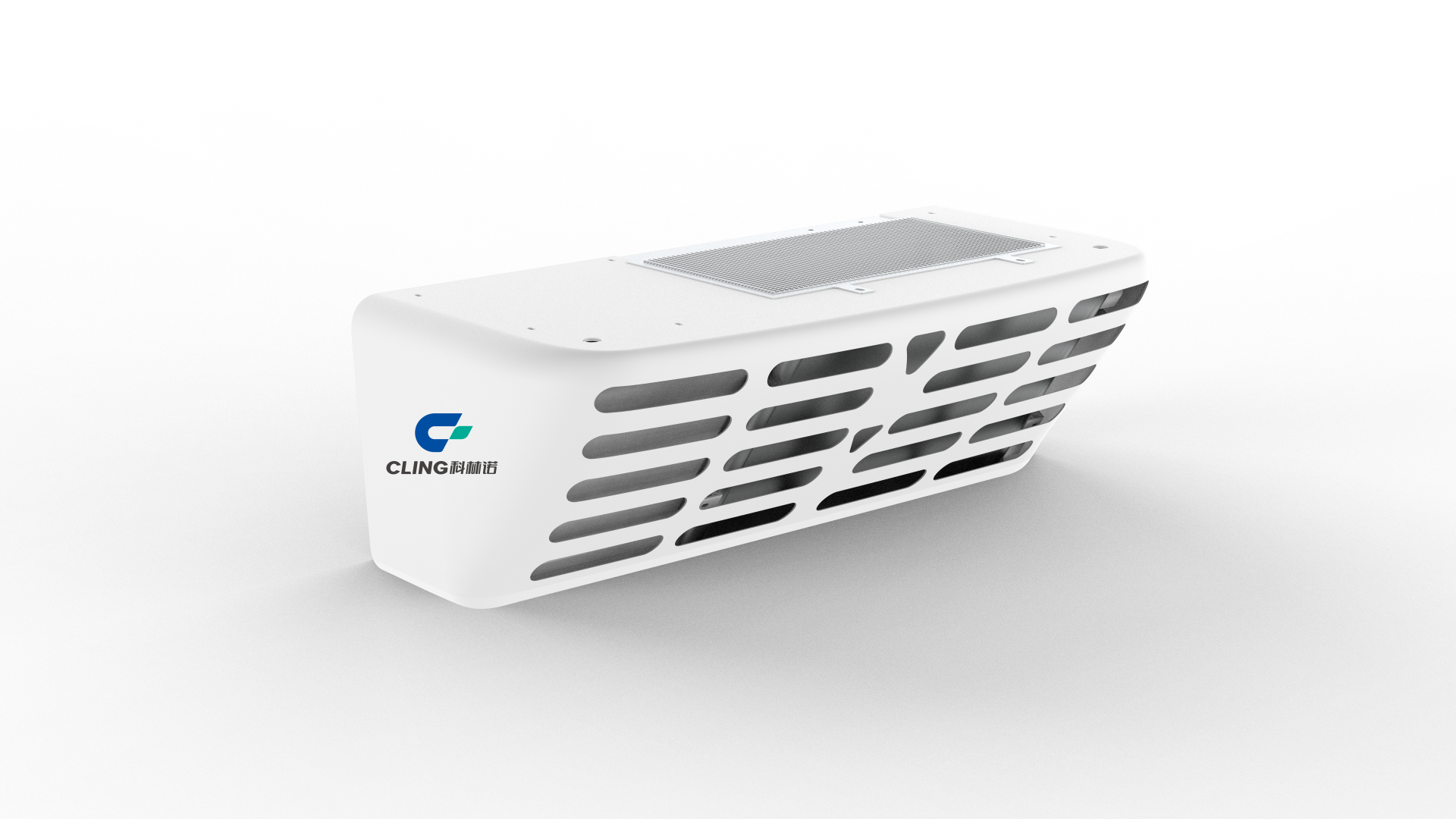

Introduction to Cling On Vehicle Refrigeration Unit
July 18,2024
Cling On-vehicle Refrigeration Unit Features
Adjustable operating mode;
The operating mode can be adjusted to shut-down or standby according to the door opening and closing signal.
Real-time monitoring of low pressure and temperature;
It can monitor the low pressure and temperature in real time, with accurate control and high reliability.
Rapid refrigerating;
With large redundancy design of condenser and evaporator, faster refrigeration is achieved.
Variable-frequency energy saving technology;
Electronic expansion valve and variable frequency compressor are adopted, making the unit more power-saving in thermal insulation.
Memory function;
Parameters are automatically saved in real time, and will be loaded automatically at each startup. Operation can be restored by power-on after shutdown under special circumstances.
Cling On-vehicle Refrigeration Unit Specification
As a professional bus air conditioner manufacturer in China, Cling offers a wide range of HVAC system products for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles etc at best cost-performance.
|
Model
|
HW-400E | HW-450E | HW-550E | HW-600E | HW-400 | HW-450 | HW-500 | |
| Applicable Power Supply |
200VDC-750VDC
|
/ | ||||||
| Operating Temperature | -25℃~30℃ | |||||||
| Applicable Box Volume (m³) | 8-12 | 16-22 | 18-28 | 28-35 | 8-12 | 16-22 | 18-28 | |
| Refrigerating Capacity W (A.T.P) | 0℃ | 4250 | 4730 | 5173 | 6400 | 4150 | 4550 | 5073 |
| -20℃ | 2250 | 2500 | 2700 | 2835 | 2050 | 2500 | 2680 | |
| Compressor | Exhaust Volume | 34cc | 40cc | 42cc | 27cc | 31cc | 35cc | |
| Condenser | Type | Micro-channel Heat Exchanger | ||||||
| Quantity of Fans | 2Pcs | 3Pcs | 2Pcs | |||||
| Voltage | 12VDC/24VDC | 24VDC | 12VDC/24VDC | 12VDC/24VDC | 24VDC | |||
| Evaporator | Type | Fin-and-tube Heat Exchanger | ||||||
| Quantity of Fans | 2Pcs | 3Pcs | 2Pcs | |||||
| Air Volume (m³/h) | 1200 | 1600 | 2000 | 1200 | 1600 | |||
| Voltage | 12VDC/24VDC | 24VDC | 12VDC/24VDC | 12VDC/24VDC | 24VDC | |||
| Refrigerant | R404A | |||||||
| Filling Amount (kg) | 1.2 | 1.5 | 1.8 | 2.2 | 1.3 | 1.6 | 2 | |
| Back-up Power | Optional | 220VAC/380VAC | / | |||||
| Heating | Optional | 1000W | 1500W | 2500W | / | |||
| Installation Type | Integrated | Divided | Integrated | Divided | ||||
| Weight (kg) | 80 | 85 | 92 | 105 | 70 | 80 | 85 | |
As a professional bus air conditioner manufacturer in China, Cling offers a wide range of HVAC system products for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles etc at best cost-performance.
If you have any questions please don't hesitate to contact us.
