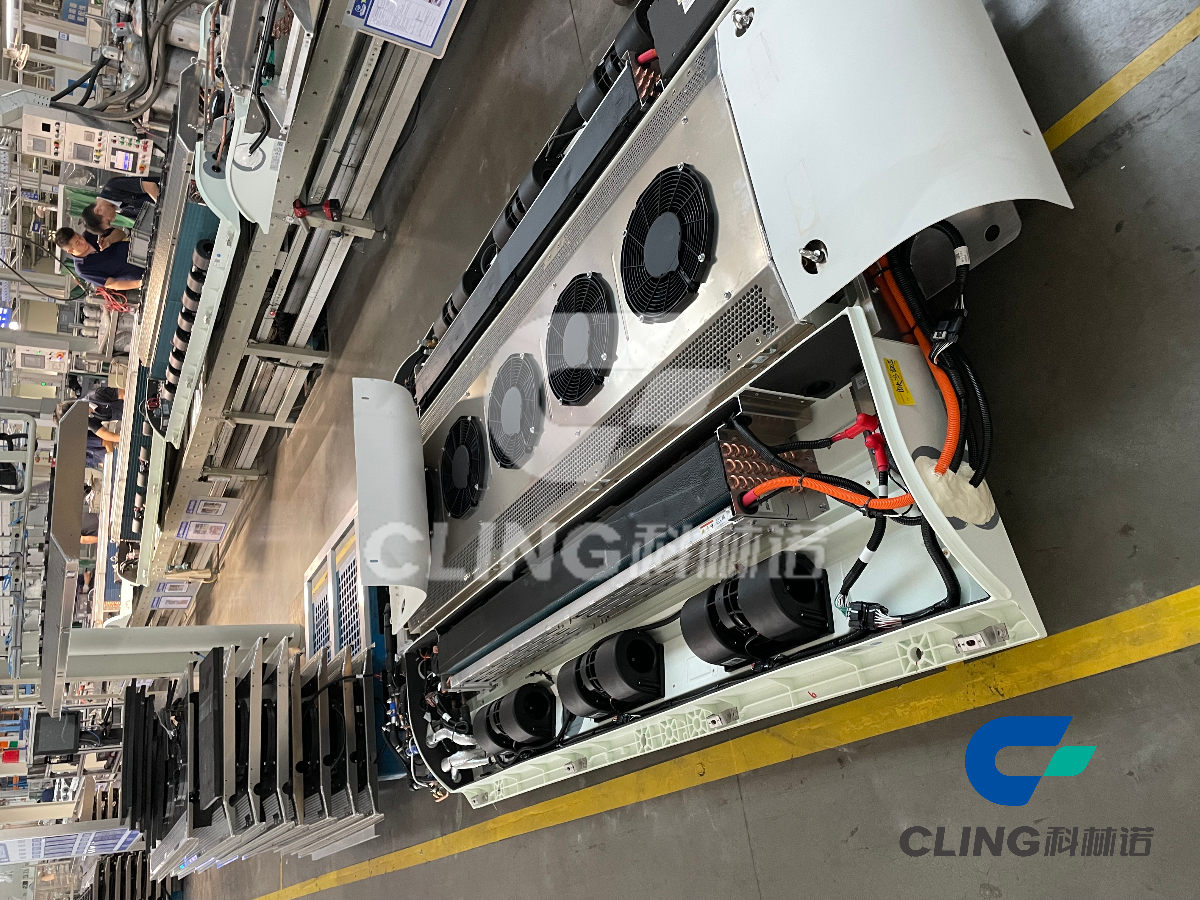

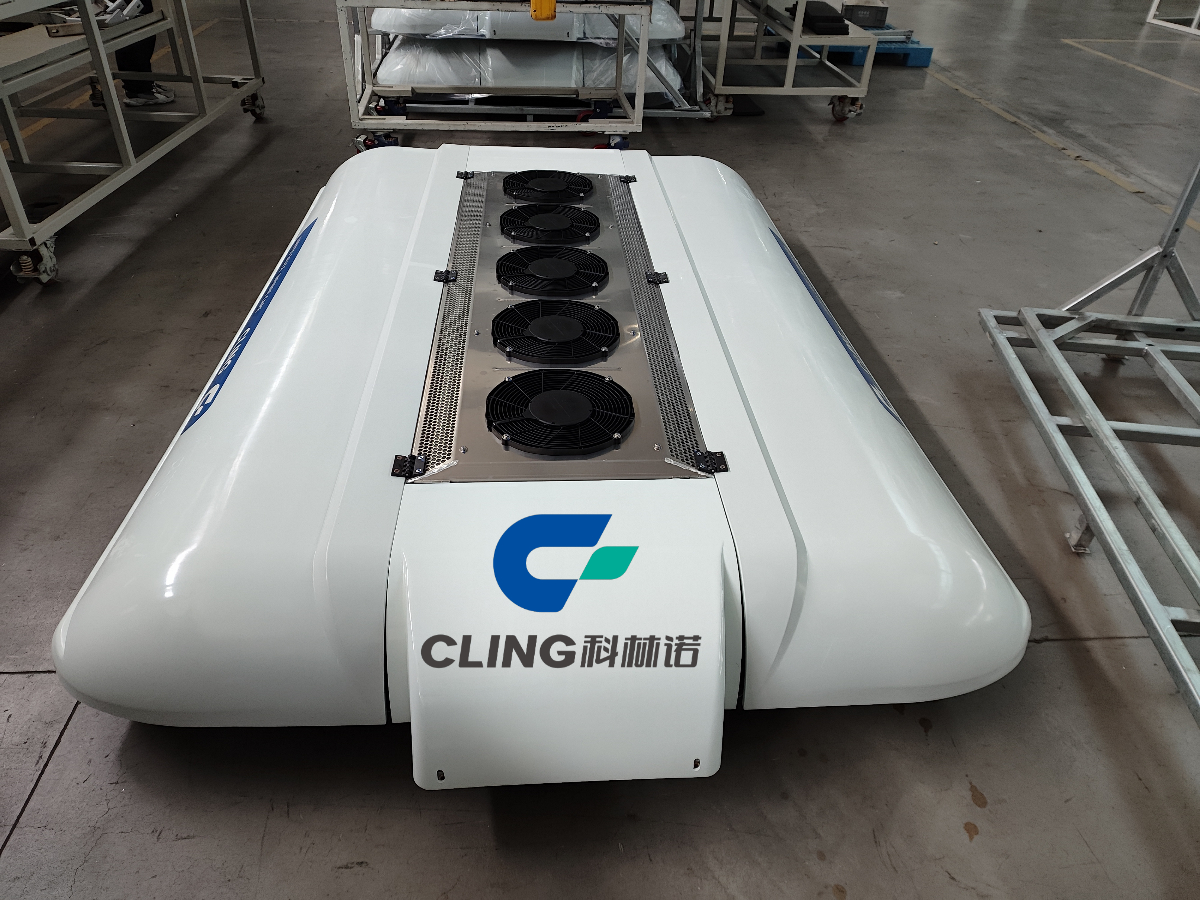

Introduction of Cling EZDS Series Bus Air Conditioner

Application
Applicable to 6~13m Battery Electric Bus, Hybrid Bus And Fuel



Features
1. Efficient- With DC Variable-frequency Compressor and Brushless Low Voltage DC Fan;

2. Advanced- Stable heating ±20°C through low temperature heat pump;

3. Intelligent- With advanced PI Variable-frequency Control, Energy Saving 15%; Smart CAN Control, Smart CAN Control, start or stop air conditioner according to bus demand, extending battery lifecycle;

4. Ultralight- EZDS-06 with length less than 3m, 7.5 kg compressor, total weight less than 300kg, 30% lighter than others;

5. Quiet- With DC brushless fan and soundproof materials, noise level reduced more than 2dB.



6. Reliable- EMC meeting european standards with E-Mark. All components selected reaching passenger car level, power module, compressor all with IP67 grade of protection. Complete pressure, temperature, undervoltage, overvoltage, short circuit, phase loss, overcurrent, multiple insulations protection.


Advantages

1. Protection Grade of IP67, Dustproof, Waterproof, Free of Damage due to Soaking in Water;

2. V-shaped vibration damping and noise reduction, low noise and comfortable environment;

3. PWM stepless speed regulation coupled electronic expansion valve, cause nature temperature transition, Energy Saving;




EZDS Series Bus Air Conditioners Technical Data Sheet
Model EZDS-04 EZDS-05 EZDS-06 EZDS-07
Cooling Capacity(kcal/h) 24000 28000 32000 38000
Heating Capacity(kcal/h) 22000 26000 30000 36000
HV platform (V) 400-750 400-750 400-750 400-750
LV platform (V) 24 24 24 24
Evaporator Airflow(m³/h) 4000(4pcs) 6000(6pcs) 6000(6pcs) 8000(8pcs)
Condenser Airflow(m³/h) 8000(4pcs) 8000(4pcs) 10000(5pcs) 10000(5pcs)
Compressor Displacement(CC) 2*EVS-34 2*EVS-34 2*EVS-34/36 2*EVS-34
Refrigerant R407c R407c R407c R407c
Weight (kg) 245 285 315 335
Size(mm) L×W×H 2500*1920*285 2750*1920*285 3000*1920*285 3250*2000*265
Application 8-9m 9-10m 10-12m 13m


As a professional bus air conditioner manufacturer in China, Cling offers a wide range of air conditioning products for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles etc at best cost-performance.
If you have any questions please don't hesitate to contact us.
