Cling Battery Thermal Management System (BTMS) Introduction
July 26,2024
Technology Status of Battery Thermal Management Products
Current Solution by Cling - Liquid Cooling System (higher cooling efficiency than air cooling)
Solution in development by Cling - Refrigerant cooling (higher cooling efficiency)
Independent BTMS Features

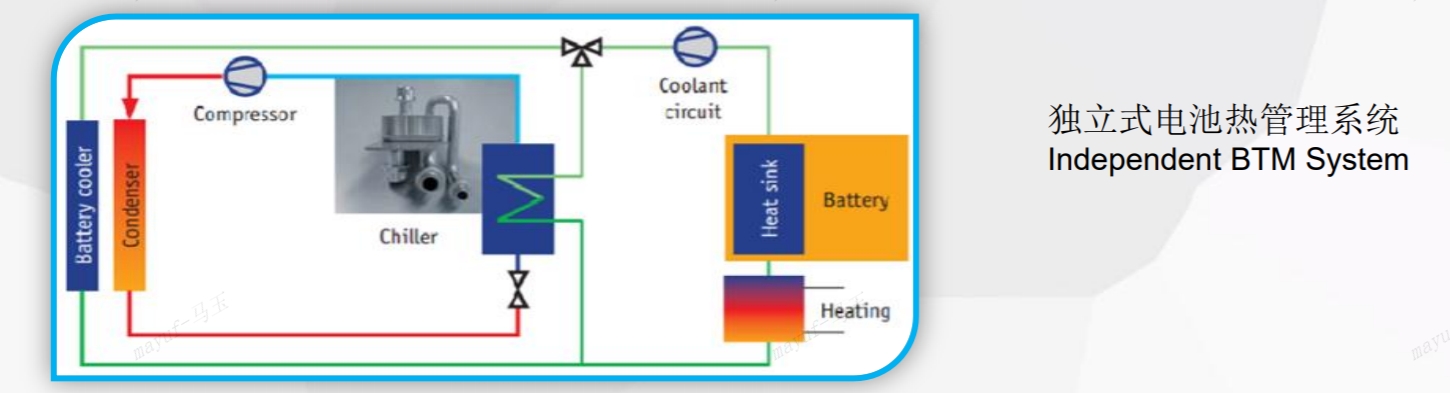

Working Principle
Independent BTMS Features
1. All the indenpendent BTM system are all use Highly electric compressor, environment Independenttally friendly refrigerants;
2. All series of products adopt PID frequency conversion control technology, fan frequency conversion control, more energy saving;
3. All BTM products have passed third-party EMC testing and are all grade III;
4. Cling has experience in the design of the waterway system of the whole vehicle, and can assist customers to design the waterway system;
5. Cling battery thermal management system has been running on electric buses for 10 consecutive years, and the product quality has been fully verified by the market.

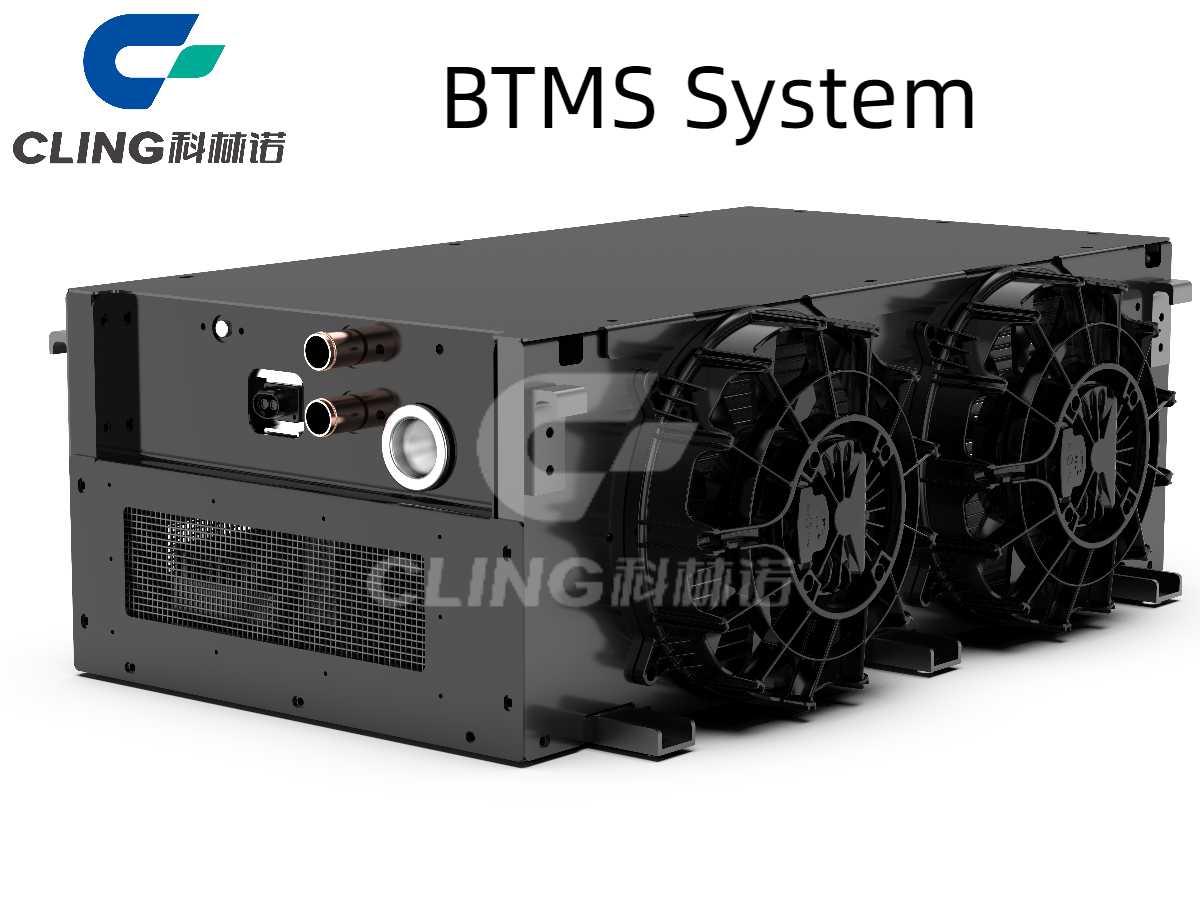

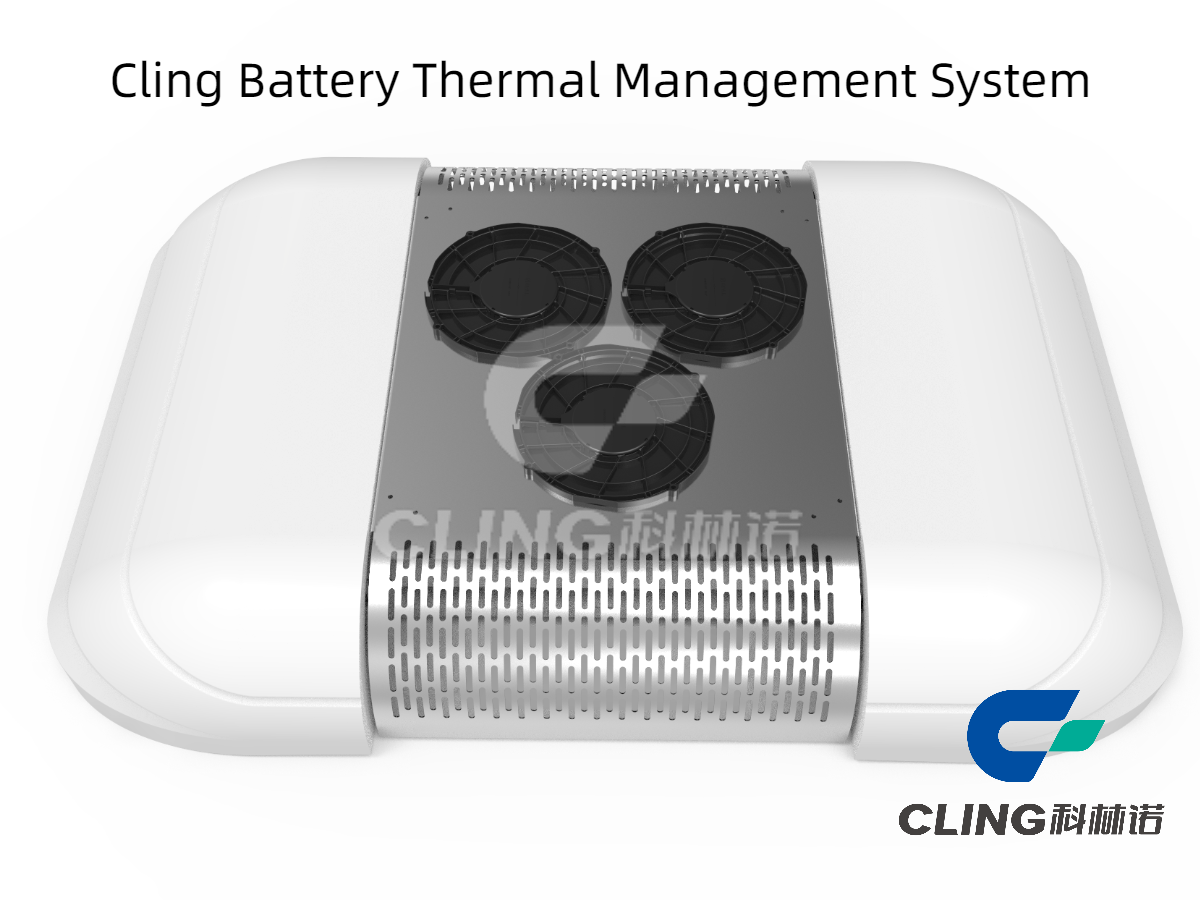

Independent BTMS Products
Technical Data Sheet
Technical Data Sheet
As a professional bus air conditioner manufacturer in China, CLING bus HVAC offers all kinds of bus air conditioner solutions, battery thermal management system, on vehicle refrigeration unit, with shortest leadtime possible! 20 years professional experience and reputation guarantees the extraordinary performance!
Technical Data Sheet
| Model | EFDR-01 | EFDR-02 | EFDR-03 | EFDR-04 |
| Customized Cooling Capacity (kW) | 3 | 5 | 8 | 10 |
| Unit Energy Efficiency | 2.2 | |||
| Unit Operating Temperature Range (℃) | -20~60 | |||
| Low Voltage Demand Power (W) | 450 | 800 | 800 | 1000 |
| High Voltage Power Supply | DC600V (400~750) | |||
| Low Voltage Power Supply | DC24V (18-32) | |||
| Water Pump (Built-in) (W) | 100 | 180 | 240 | 240 |
| Overall Protection Level | IPX7 | |||
| Refrigerant | R1234yf / R134a | |||
| Refrigerating Medium Type | 50%VV Ethylene Glycol Aqueous Solution | |||
| Overall Dimensions (mm) LxWxH | 685*600*280 | 685*600*280 | 818*600*280 | 1005*557*280 |
| Joint | Flange/pier head ( Φ25) / Customizable | |||
| Connector | Aviation plug-in / AMP | |||
| Low Voltage Power Distribution | DC-DC included in the unit / Vehicle supply | |||
| Heating Function | Reserve 5kW/10kW/14kW/24kW for selection | |||
Technical Data Sheet
| Model | EDDR-02 | EDDR-03 | EDDR-04 |
| Cooling Capacity (kW) | 5 | 8 | 13 |
| HP Power Supply | DC400V-DC750V | DC400V-DC750 V | DC400V-DC750 V |
| LP Power Supply | DC24V(18V-30V) | DC24V（18V-30V） | DC24V（18V-30V） |
| Weight (kg) | 80 | 85 | 90 |
| Size (mm) LxWxH | 1300*1920*256 | 1300*1920*256 | 1300*1920*256 |
| Control Power | DC24V on/off signal | DC24V on/off signal | DC24V on/off signal |
| LP Power Source | DC-DC(standard configuration) | DC-DC(standard configuration) | DC-DC(standard configuration) |
| Pump | As per customer requirement | As per customer requirement | As per customer requirement |
| Refrigerant | R134a | R407C | R407C |
| Coolant | 50%VV Ethylene glycol aqueous solution | 50%VV Ethylene glycol aqueous solution | 50%VV Ethylene glycol aqueous solution |
| Pipe | As per customer requirement | As per customer requirement | As per customer requirement |
| Protection Level | IP54 | IP54 | IP54 |
