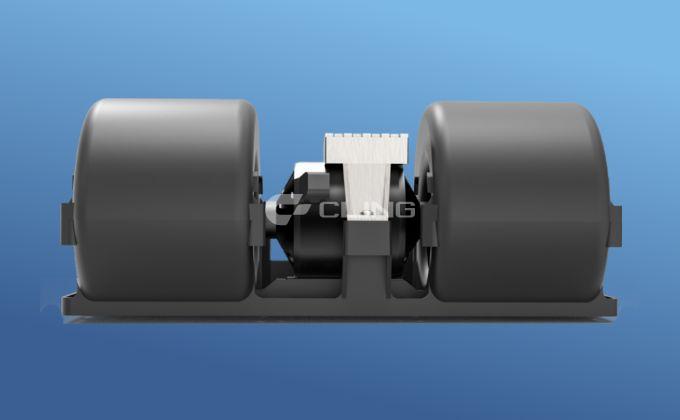

CLING Brushed Evaporator Fan

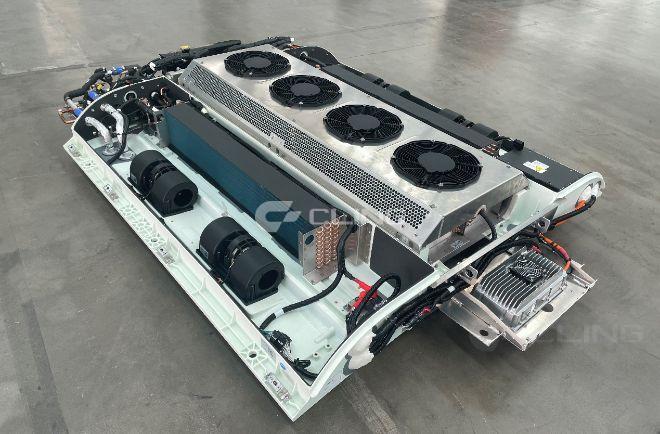

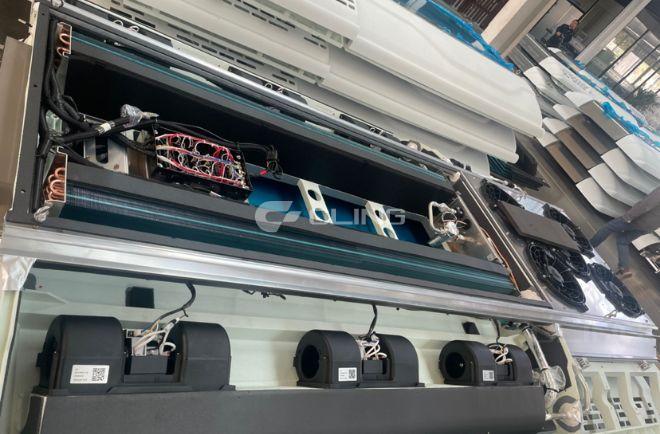

Cling's independently developed long-life, low-noise brushed evaporator fan can be applied to scenarios such as commercial vehicle air conditioning units, thermal management systems and defrosters.
-
City Bus
Home
Products
Product Introduction

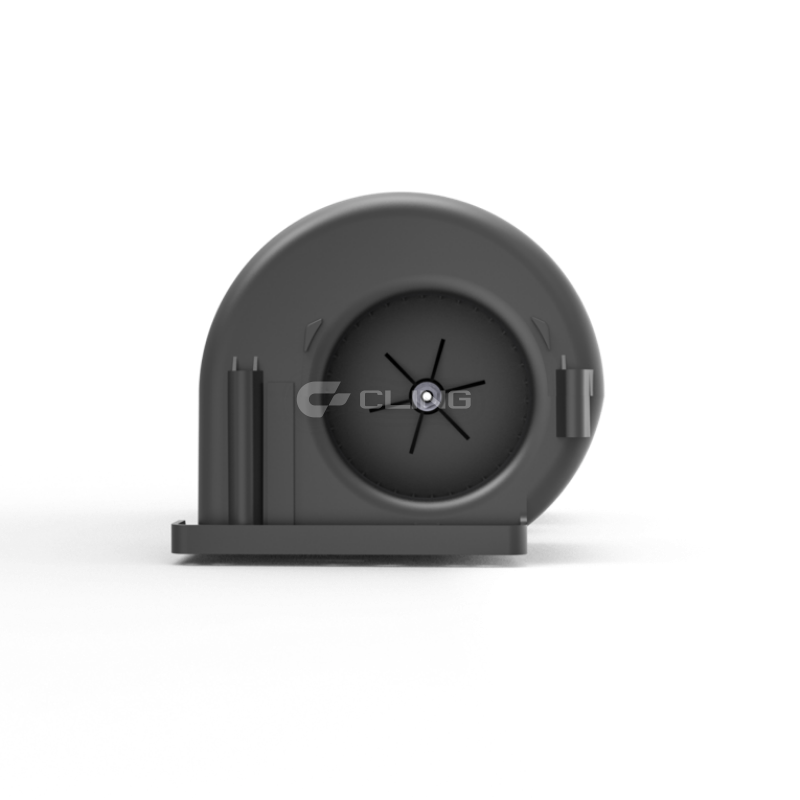

Fan Basic Parameters: Model: 8170-00007 Life: 10000 hours Maximum Rpm: 3100 Operating Voltage: 26V
Resistance: 4-position/ 3-position/ 2-position/ 1-position speed control
Motor: Power: 200W Rated voltage: DC24V Waterproof Grade: IP24
Volute: Material: PP+GF30 Working temperature: -40~120 °C
Fan Wheel: Specifications: 34 blades, Ø99mm Material: PA6+GF30 Operating Temperature: -40 ~ 120 ℃ Unbalance: ≤10g·mm
Base: Material: PP+GF30 Working temperature: -40~120 °C.
Features
1
Cling brushed fans are equipped with built-in filters, ensuring electromagnetic compatibility performance for the entire vehicle when integrated with air conditioning units, outperforming other fan manufacturers in the industry.
2
Cling brushed fans select materials from the top three suppliers in the industry for key components such as bearings, carbon brushes, commutators, and magnetic plates, ensuring superior product quality, reliable manufacturing processes, and consistent, timely supply.
3
The evaporator fan has been optimized in terms of structural strength, blade design, and brush holder, resulting in a 2-decibel reduction in noise levels. The condenser fan's lifespan exceeds that of other domestic manufacturers by 25%, while the evaporative fan's lifespan surpasses competitors by 50%.
4
Aligning with industry leaders in manufacturing processes, Kelin has introduced fully automatic motor rotor production lines and semi-automatic fan assembly lines. By integrating multiple advanced processing techniques and online monitoring technologies, we enhance product precision and consistency.
- Working Principle Cooling:
-

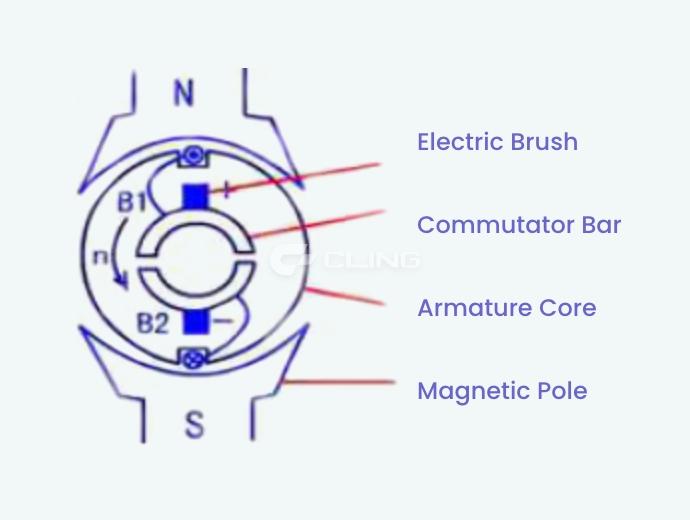

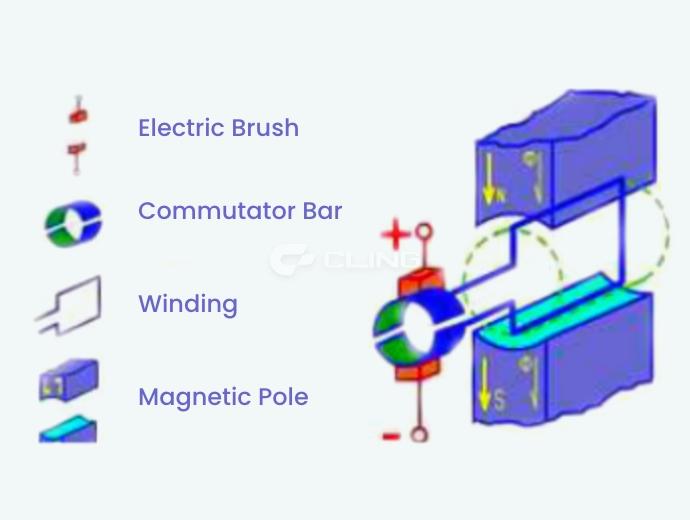

The brushed motor is a type of DC motor that achieves mechanical commutation through brushes and commutators. It consists of a stator, rotor, brushes, and commutators. Its working principle is based on electromagnetic field interaction. The brushes work in conjunction with the commutator to reverse the current direction, enabling the rotor windings to continuously rotate within the stator magnetic field.
