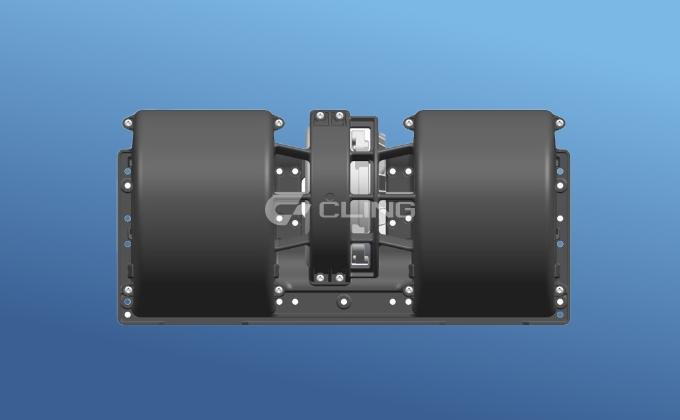

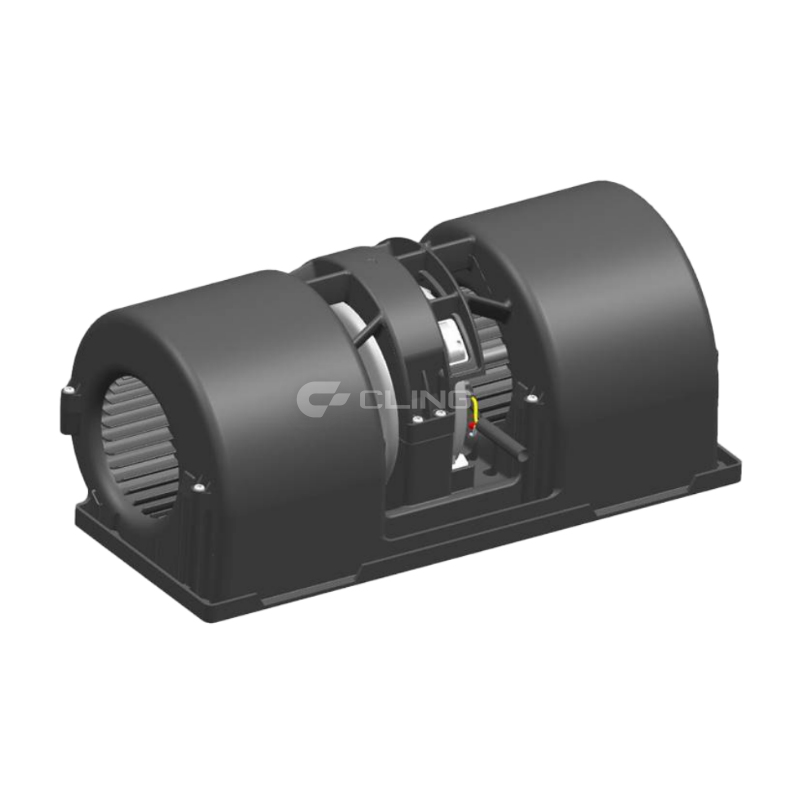

CLING Brushless Evaporator Fan
Kelin's independently developed long-life, low-noise brushless condenser and evaporator fan can be applied to scenarios such as commercial vehicle air conditioning units, thermal management systems and defrosters.
-
City Bus
Home
Products
Product Introduction
Fan Basic Parameters: Life: 40,000 hours Maximum rpm: 3,250 Operating voltage: 16V ~ 32V
Motor Parameters: Power: 300W Rated Voltage: DC24V Control Method: PWM/Analog Voltage Speed Range: 20% ~ 95% Analog Voltage Input: 2V ~ 10V Waterproof Rating: IP68 Connector: AMP Superseal 1.5 Series, Part No. 282106-1
Fan Blade: Specifications: 7 blades, Ø305mm Material: PA6+GF30 Operating Temperature: -40 ~ 120 ℃ Unbalance: ≤20g·mm
Wind Frame: Material: PA6 + GF30 Operating Temperature: -40 ~ 120 °C.
Features
1
Cling brushless fans have mastered the IP68 high-efficiency protection technology for internal rotor fans. The developed fans match international competitors in energy efficiency, airflow, and reliability, while offering advantages in electromagnetic compatibility, noise levels, and cost.
2
Cling brushless fans support 2 speed control methods of PWM and analog voltage, achieving IP68+IP6K9K waterproof ratings equivalent to SPAL's standards.
3
Cling brushless fans utilize international brands' materials for electrical components in the electric control system. Other critical parts, including bearings, plastic raw materials, and magnetic tiles, are sourced from top-tier suppliers within the industry. This ensures superior product quality, refined manufacturing processes, and reliable, timely supply chain performance.
4
Aligning with industry leaders in manufacturing processes, Kelin has introduced fully automatic stator production lines and semi-automatic fan assembly lines. By integrating multiple advanced processing techniques and online monitoring technologies, we enhance product precision and consistency.

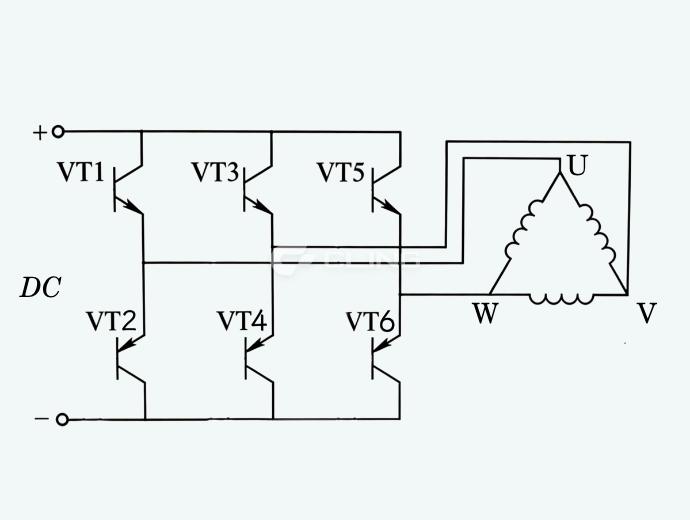

- Working Principle Cooling:
-
Brushless DC motors employ semiconductor switching devices to achieve electronic commutation, replacing the traditional contact commutator and brushes with electronic switching components.
Technical Parameters
