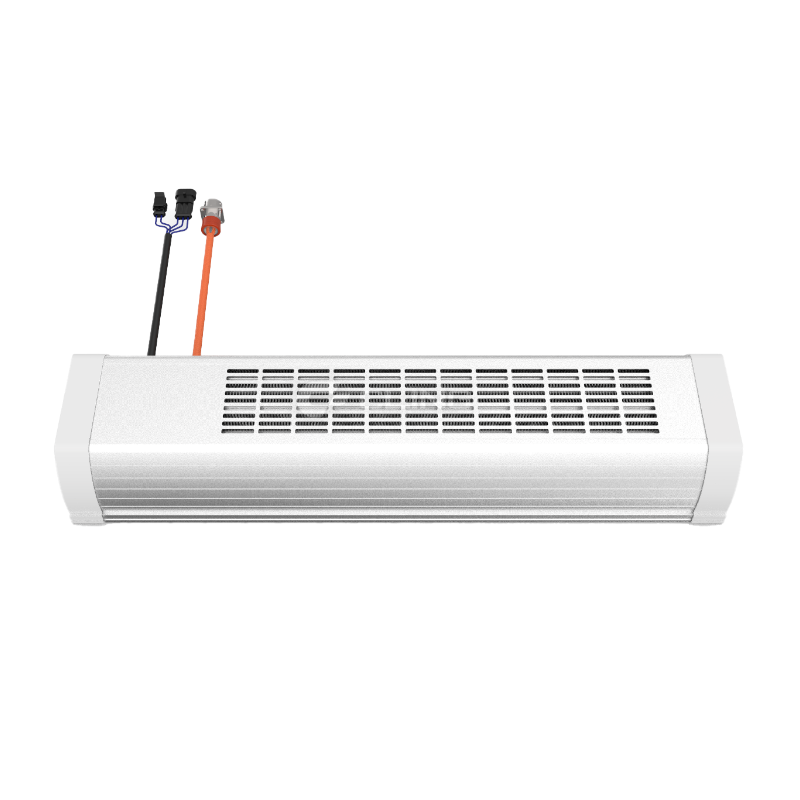

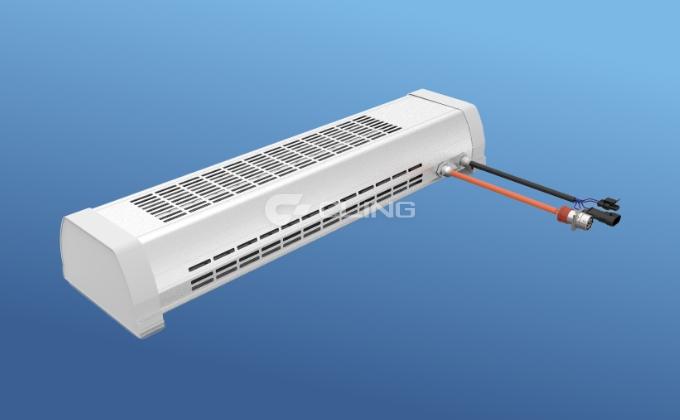

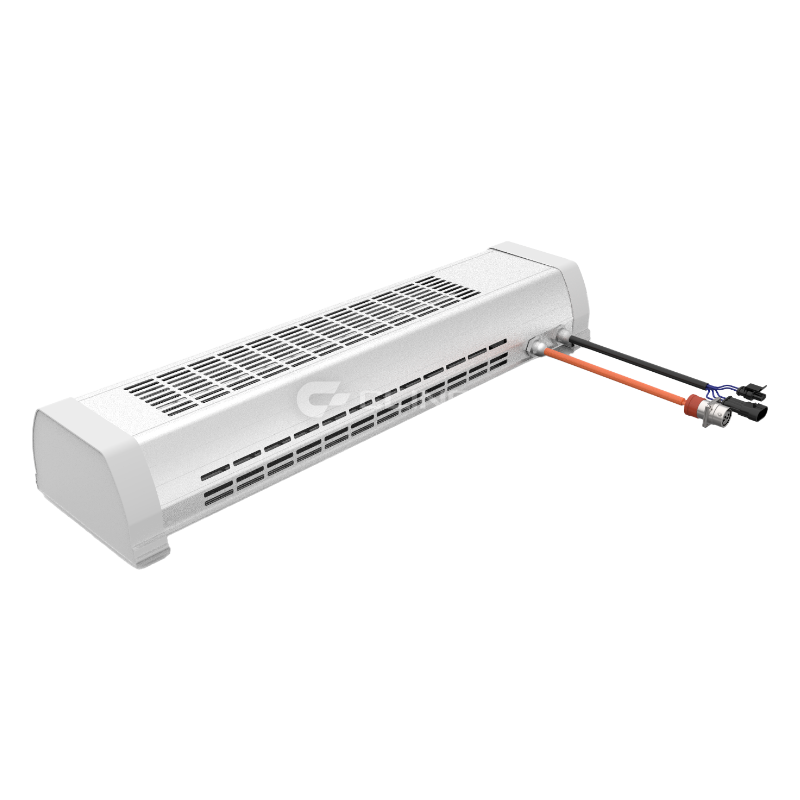

CLING Electric Wall-mounted Radiator-Cling

Product Introduction

The Cling passenger compartment wall-mounted heating products provide good heating effects and are characterized by their aesthetic appeal, lightweight, environmental friendliness, and high-end quality.

Features

Quiet and Comfortable

With noise levels below 59 decibels and adjustable settings, it adapts to various environments, providing passengers with a quiet and comfortable riding experience.

Aesthetic Design

The product features an elegant and streamlined design, easy installation with no visible screws, and seamless integration into the vehicle's interior, ensuring a pleasant journey that begins with visual satisfaction.

Safe and Reliable

Equipped with a 20,000-hour ultra-long-life fan, high-voltage protection rated IP68, EMC-3 level, and grounding wires for all products, ensuring safety and reliability. Certified by the EU E-Mark.

Diverse Configurations

Available in various heating powers, fan speeds, wiring directions, and sizes, it meets the needs of different usage scenarios, saving customers time and effort.

Customized Airflow

Through multi-flow field simulation analysis and tailored to the usage habits of domestic and international customers, multiple types of radiators are designed to meet personalized needs.

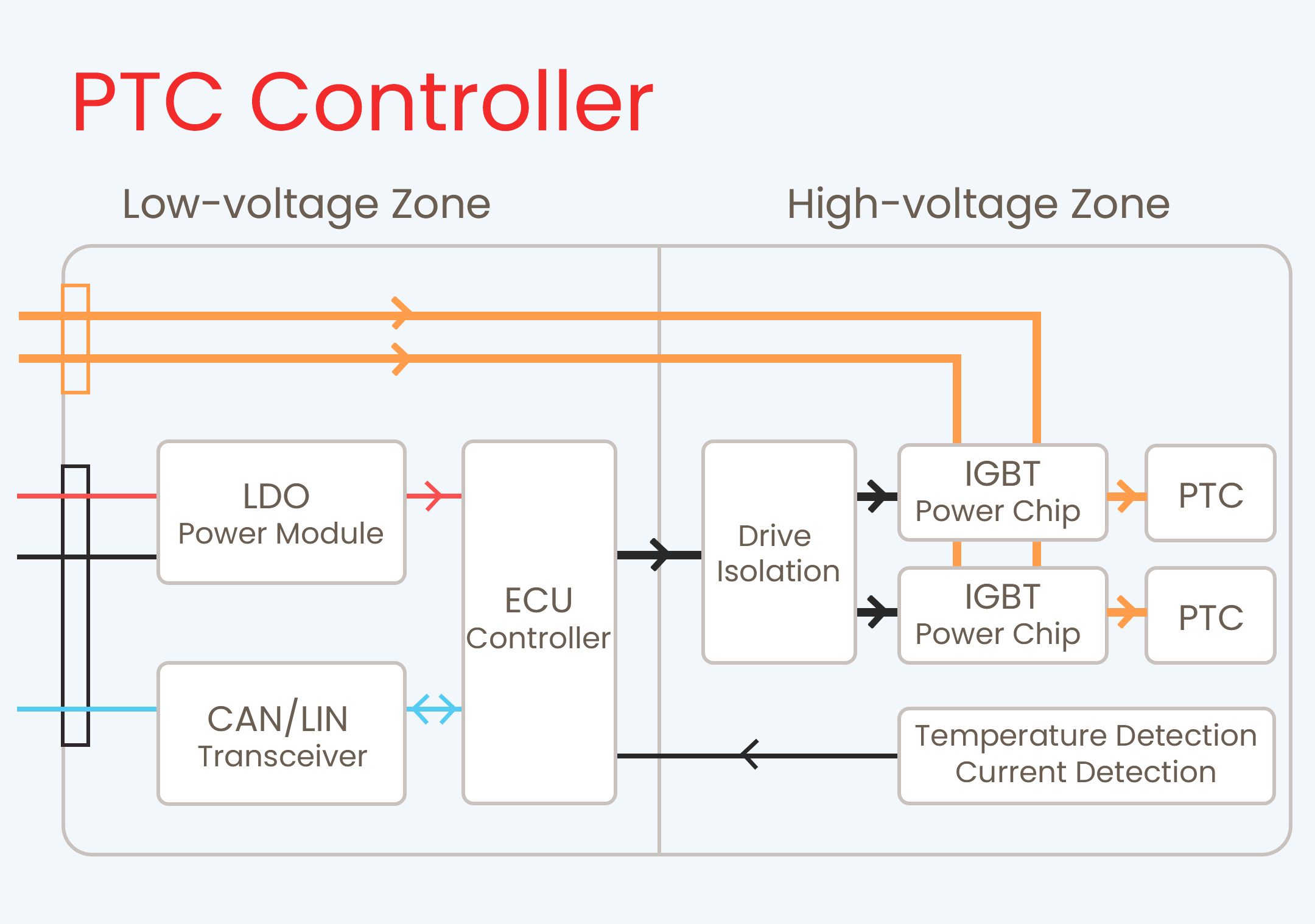

Working Principle Cooling:: PTC radiator is a self-regulating electric heating device based on PTC thermistors. Its core principle involves achieving constant temperature heating and overheat protection through the characteristic of material resistance changing with temperature. Internally, upon receiving a command from the ECU, it drives the IGBT to control the power supply and heating of the PTC. Moreover, the configuration of multiple PTC resistors enables the heater to achieve multi-level control, while temperature and current detection ensures safe and efficient heating.

Technical Parameters

KLDS-01

KLDS-02

KLDS-03

KLDS-07

Model	KLDS-01
Heating	1300 kcal/h 1.5 kW 5100 BTU/h
Airflow (m³/h)	170
Blower Power Consumption(W)	20
Blower (Lifespan)	Brushless axil flow fan 20000h
Speed Mode	One Shift
Dimension (mm) L×W×H	65316595
Weight (kg)	4.3
Protection Grade	IP54 as a whole part (IP68 for high-voltage components), EMC-3
Application (M)	6-12

Model	KLDS-02
Heating	2200 kcal/h 2.5 kW; 8500 BTU/h
Airflow (m³/h)	230
Blower Power Consumption(W)	36
Blower (Lifespan)	Brushless axil flow fan 20000h
Speed Mode	Two Shifts
Dimension (mm) L×W×H	666178103
Weight (kg)	6.2
Protection Grade	IP54 as a whole part (IP68 for high-voltage components), EMC-3
Application (M)	6-12

Model	KLDS-03
Heating	2600 kcal/h 3 kW; 10200 BTU/h
Airflow (m³/h)	325
Blower Power Consumption(W)	49
Blower (Lifespan)	Brushless axil flow fan 20000h
Speed Mode	Two Shifts
Dimension (mm) L×W×H	666178103
Weight (kg)	6.2
Protection Grade	IP54 as a whole part (IP68 for high-voltage components), EMC-3
Application (M)	6-12

Model	KLDS-07
Heating	6000 kcal/h 7 kW; 24000 BTU/h
Airflow (m³/h)	750
Blower Power Consumption(W)	85
Blower (Lifespan)	Brushless axil flow fan 20000h
Speed Mode	Two Shifts
Dimension (mm) L×W×H	1818178103
Weight (kg)	13.6
Protection Grade	IP54 as a whole part (IP68 for high-voltage components), EMC-3
Application (M)	6-12

Customer Cases

Download Brochure

KLDS-02.pdf
KLDS-03.pdf
KLDS-07.pdf
KLDS-01.pdf
