School Bus AC
School bus air conditioner is a rooftop air conditioning units for 5 to 12m school bus, cooling capacity from 10000 to 24000 kcal/h, light weight, more economical.
School Bus
Technical Data Sheet
Model | XPZD-II | XDD-03 | XDD-04T |
Cooling Capacity (Kcal/h) | 16000 | 20000 | 24000 |
Voltage(V) | 24 | 24 | 24 |
Power Consumption (A) | 55 | 65 | 65 |
Evaporator Airflow (m³/h) | 3440 | 4000 | 4000 |
Condenser Airflow (m³/h) | 4000 | 5400 | 5400 |
Compressor Displacement (CC) | 310 | 380/430 | 430 |
Refrigerant | R134a | R134a | R134a |
Refrigerant Charge (kg) | 2.7 | 5.3 | 5.3 |
Weight (kg) | 110 | 140 | 140 |
Size(mm) LxWxH | 2090*1640*220 | 2752*1848*220 | 2752*1848*220 |
School Bus Length (m) | 6-8 | 8-10 | 10-12 |
Installation
Preparation
First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.
Evaporator and Condensor Installation
Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.
Cover Installation
Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.
Keywords: bus ac, bus A/C, bus air conditioner, bus air conditioning.

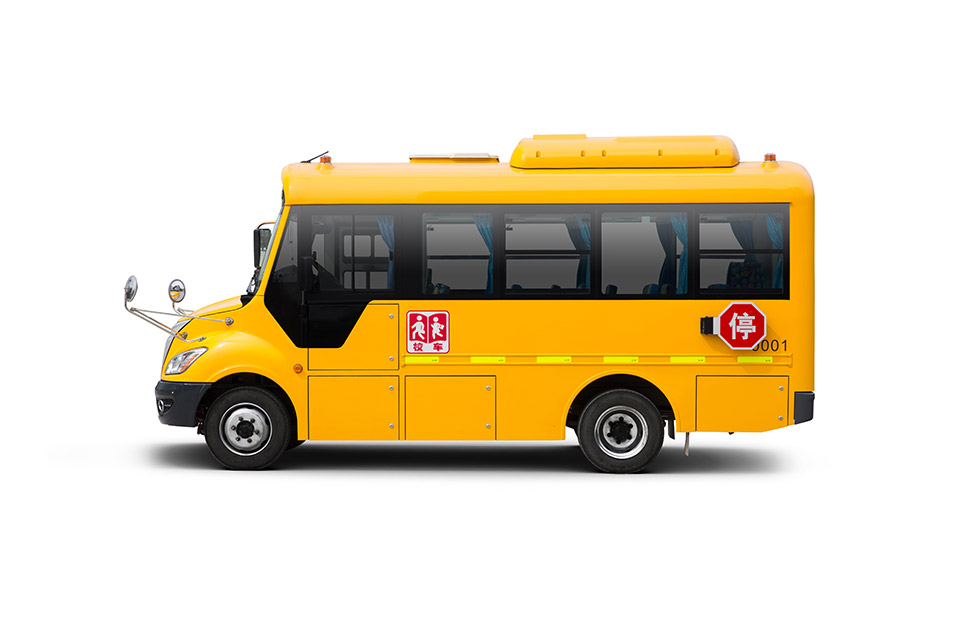

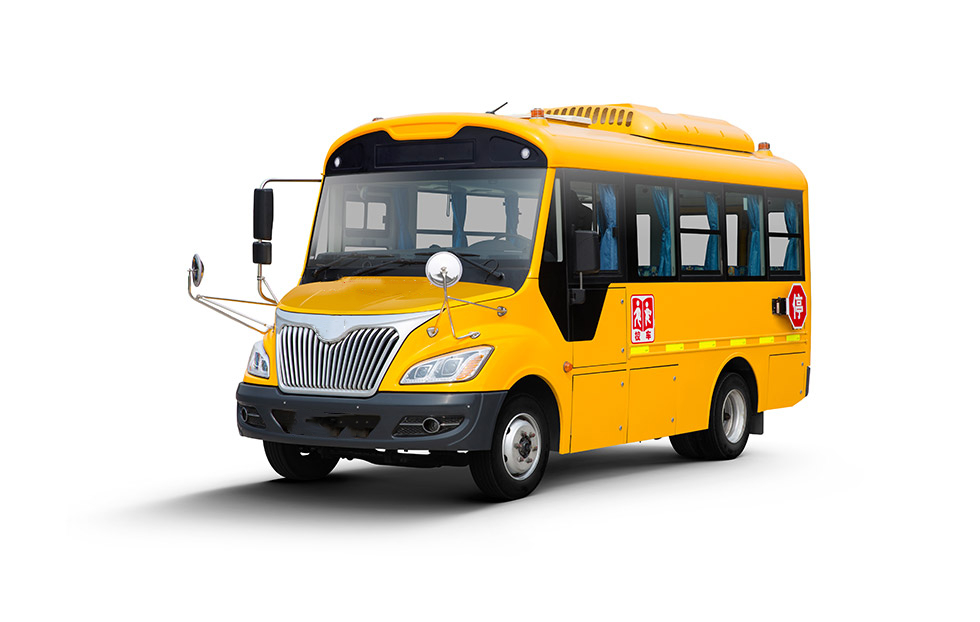

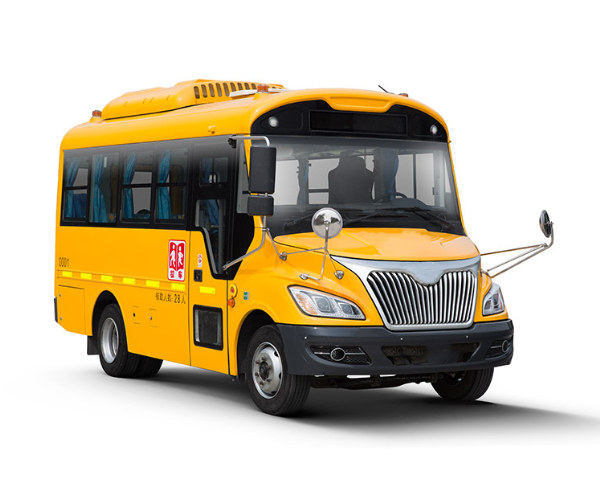

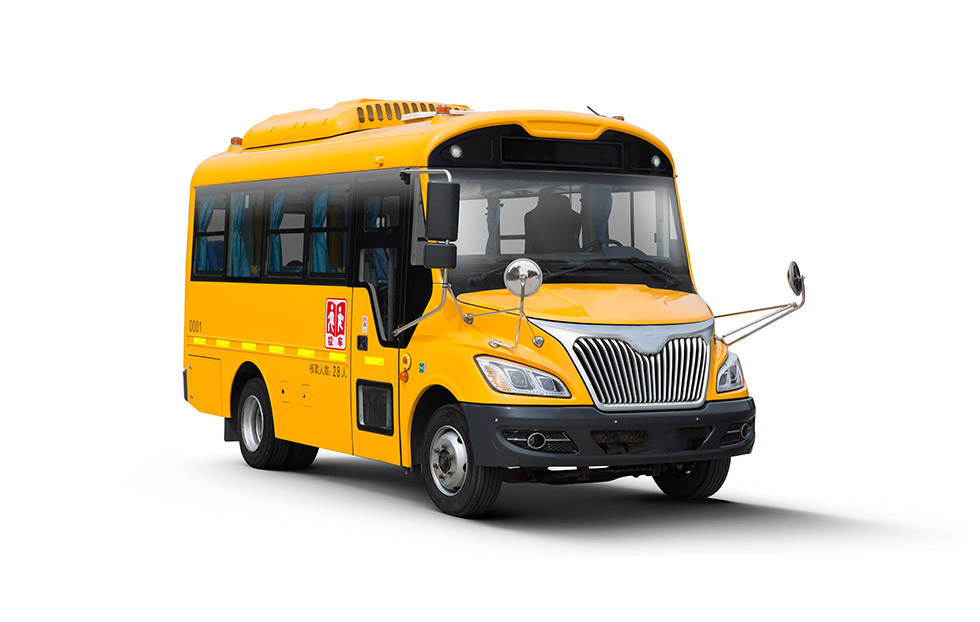

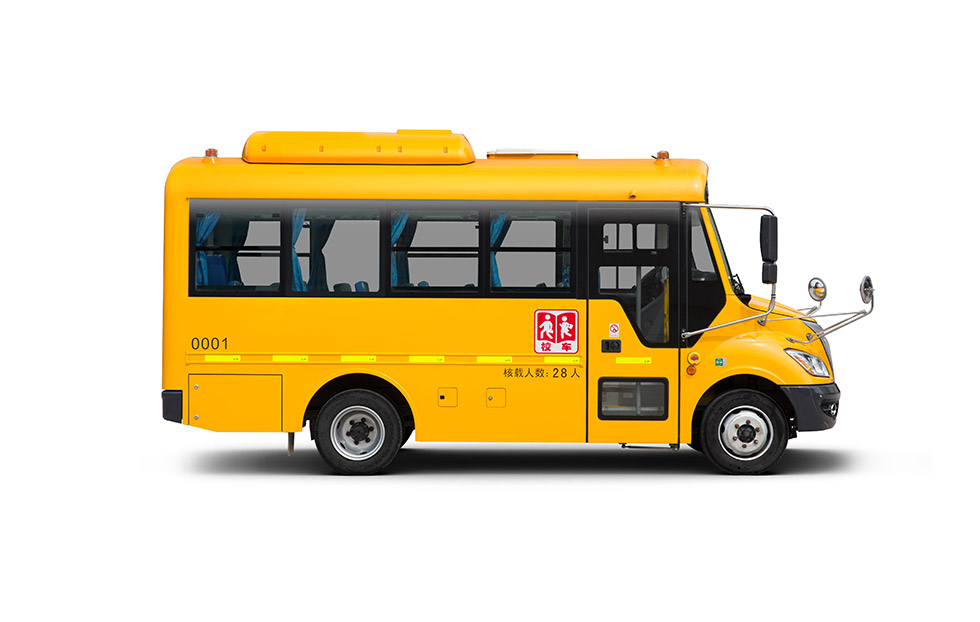

Photos
